Lenovo Y series laptops (ideapad) Y100 (3000) Laptop (IdeaPad), motherboard Schematic diagram

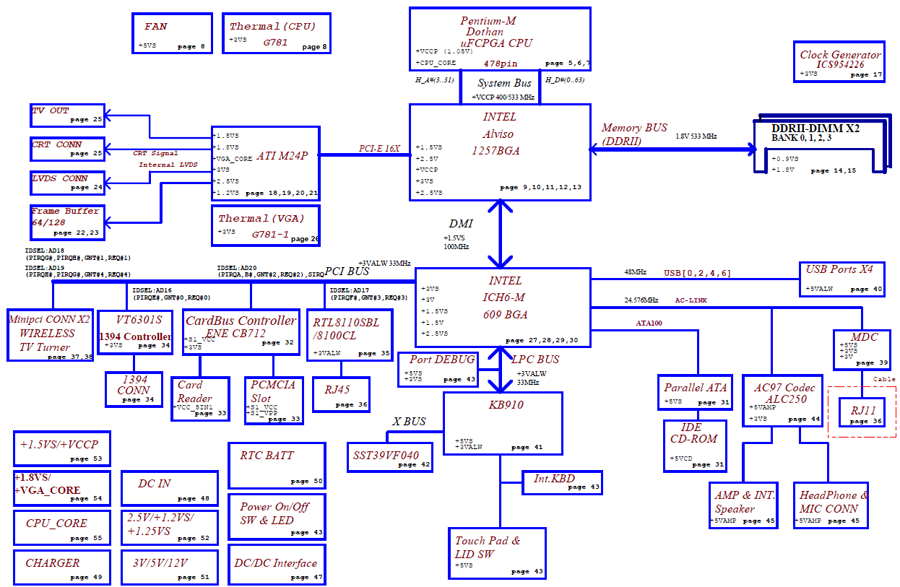

Click on picture to enlarge

Price: US $15.00

Also included:

Power Block Diagram

Major components:

CPU Intel Pentium-M Dothan
NB/SB intel Alviso / ICH6-M
GPU ATI M24P (DIS)
EC KB910


File type : PDF (Searchable)
Language : English
Updated: 25-12-2018
