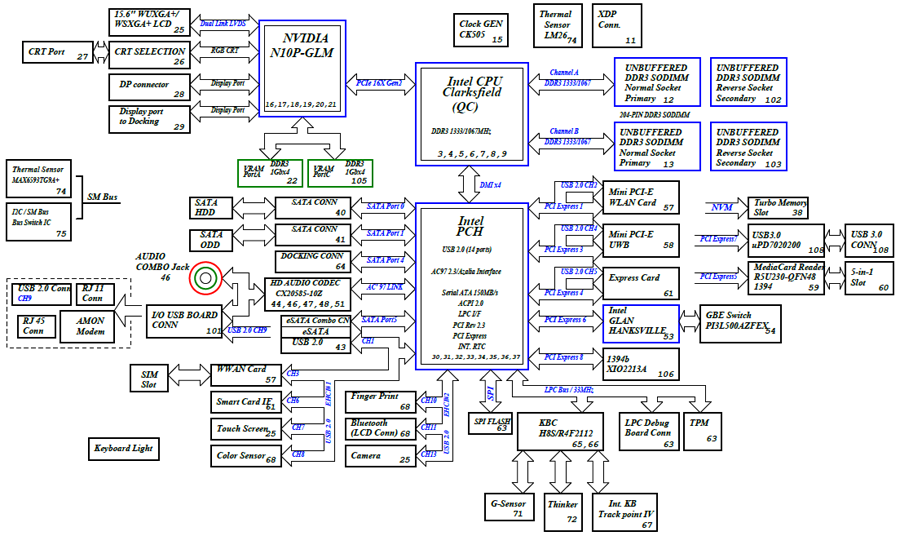

Lenovo T series laptops (ThinkPad) T510 Laptop (ThinkPad) (DIS GPU), motherboard Schematic diagram
Click on picture to enlarge |

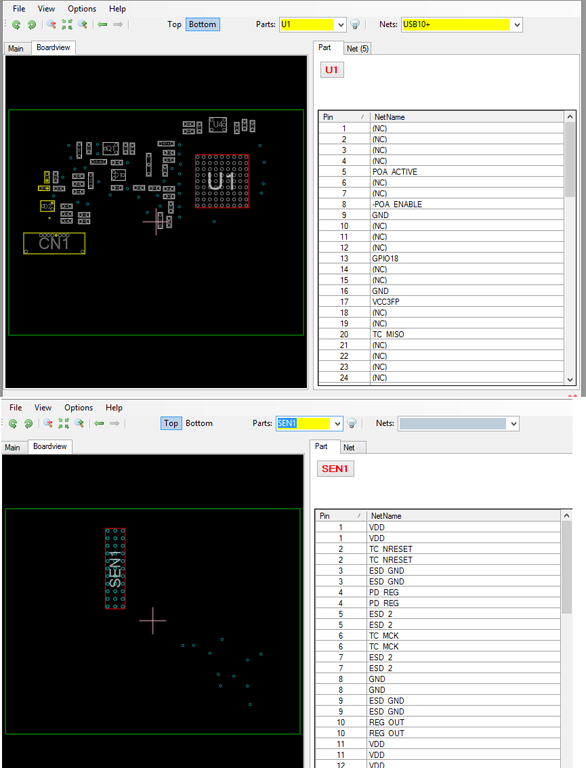

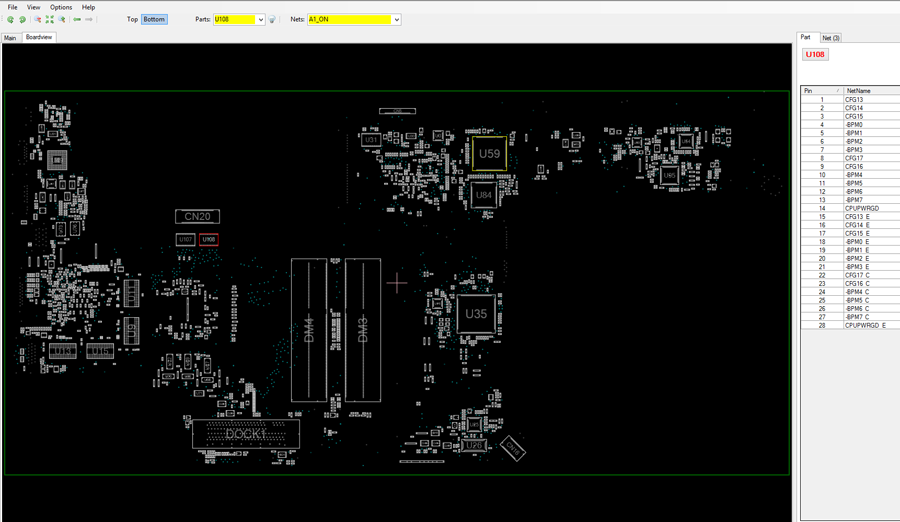

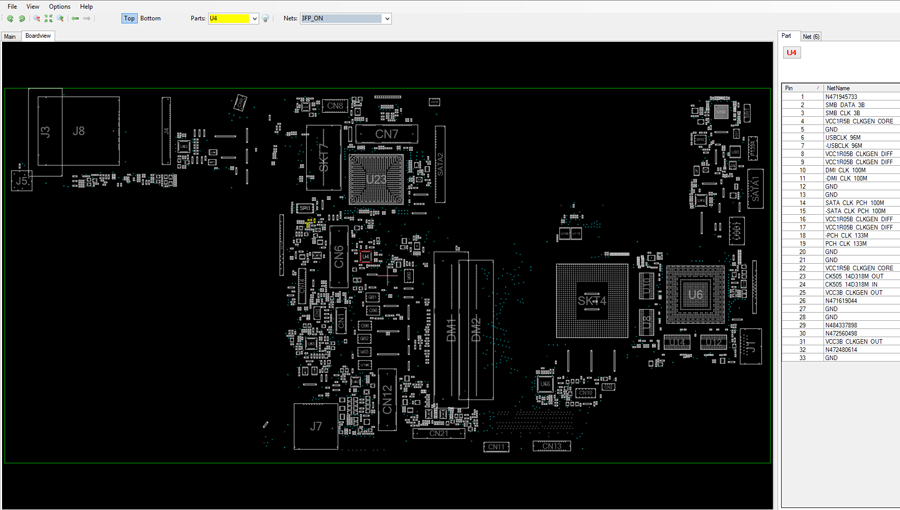

MB #s: 63Y1540, 63Y1541, 63Y1542, 63Y1543, 63Y1544, 63Y1545 Also included: BoardView file for MB Schematic diagram and BoardView file for a Fingerprint board BoardView software Major components: Intel Clarksfield QC PCH IBEXPEAK-M GPU: nVidia N10P-GLM (DIS) KBC: H8S/R4F2112 File type : PDF (Searchable) Language : English |
---|
