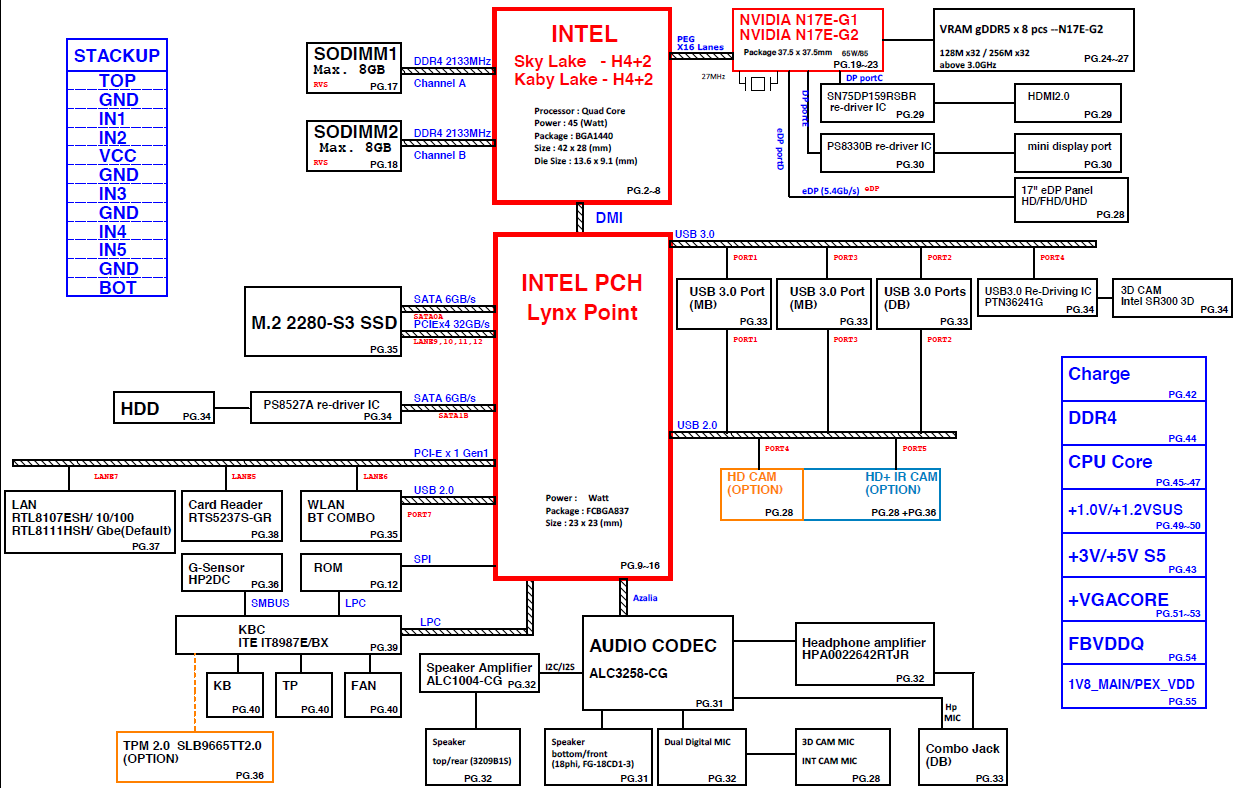

Quanta > G38D, motherboard Schematic diagram

Click on picture to enlarge

Price: US $15.00

Also Included:

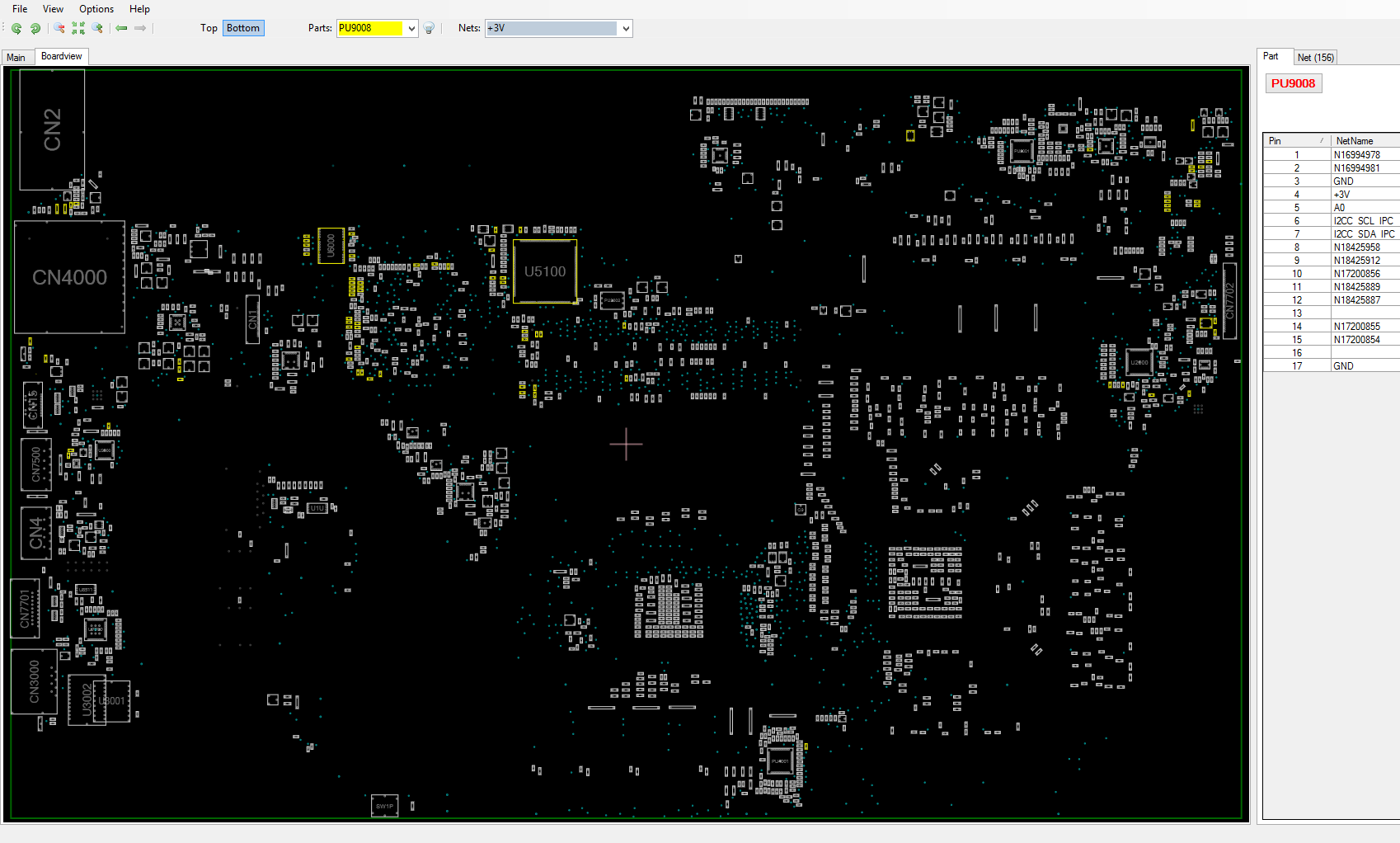

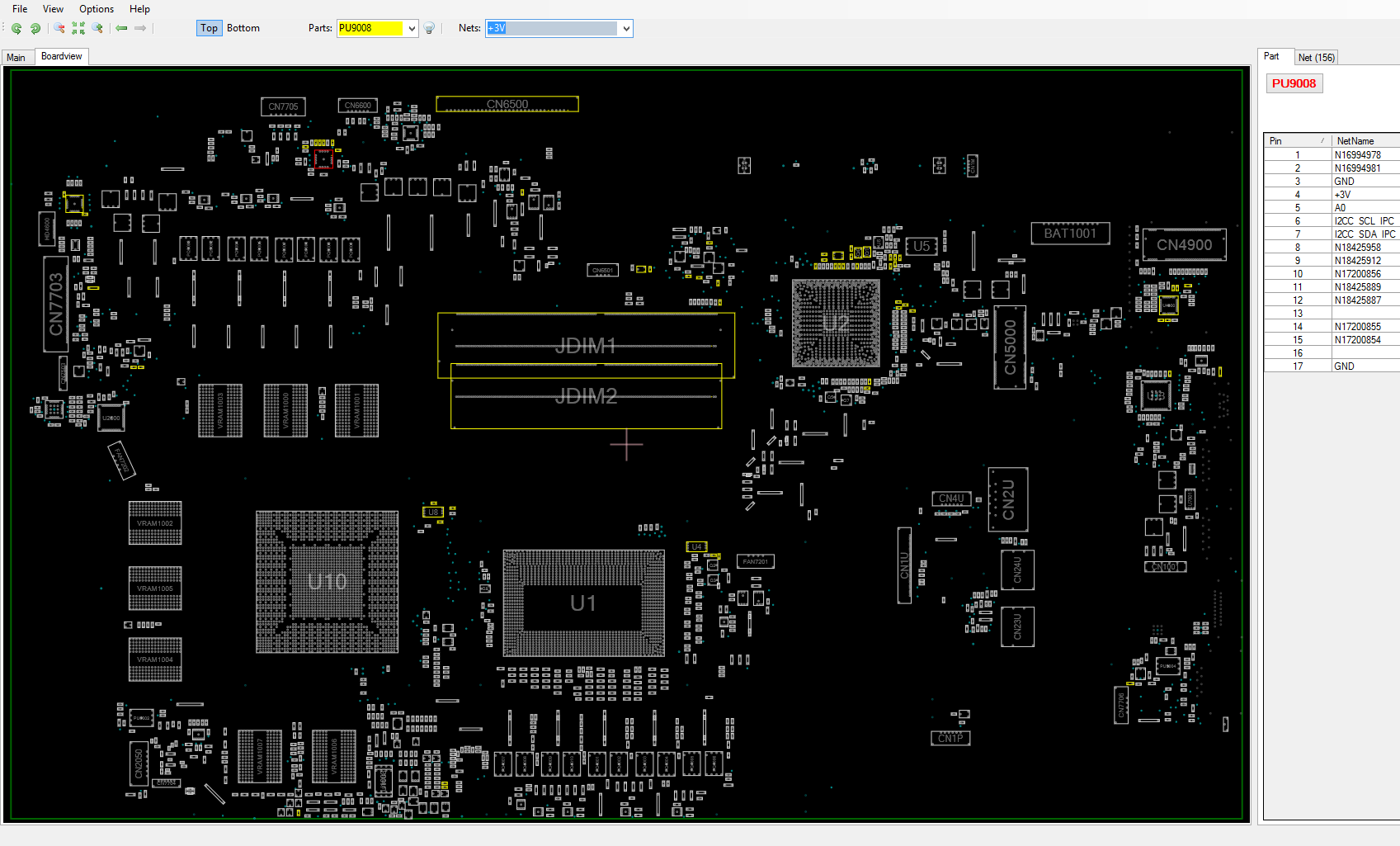

BoardView file and BoardView software

Major components:

Intel Skylake/KabyLake + Lynx Point (PCH)
GPU: NVIDIA N17E-G1/N17E-G2 (DIS)
EC: ITE IT8987E/BX

MB# DAG38DMBCC0 (HP OMEN)

File type : PDF (Searchable)
Language : English
Updated: 23-03-2018
Copyright © 2009-2018 www.laptop-schematics.com
