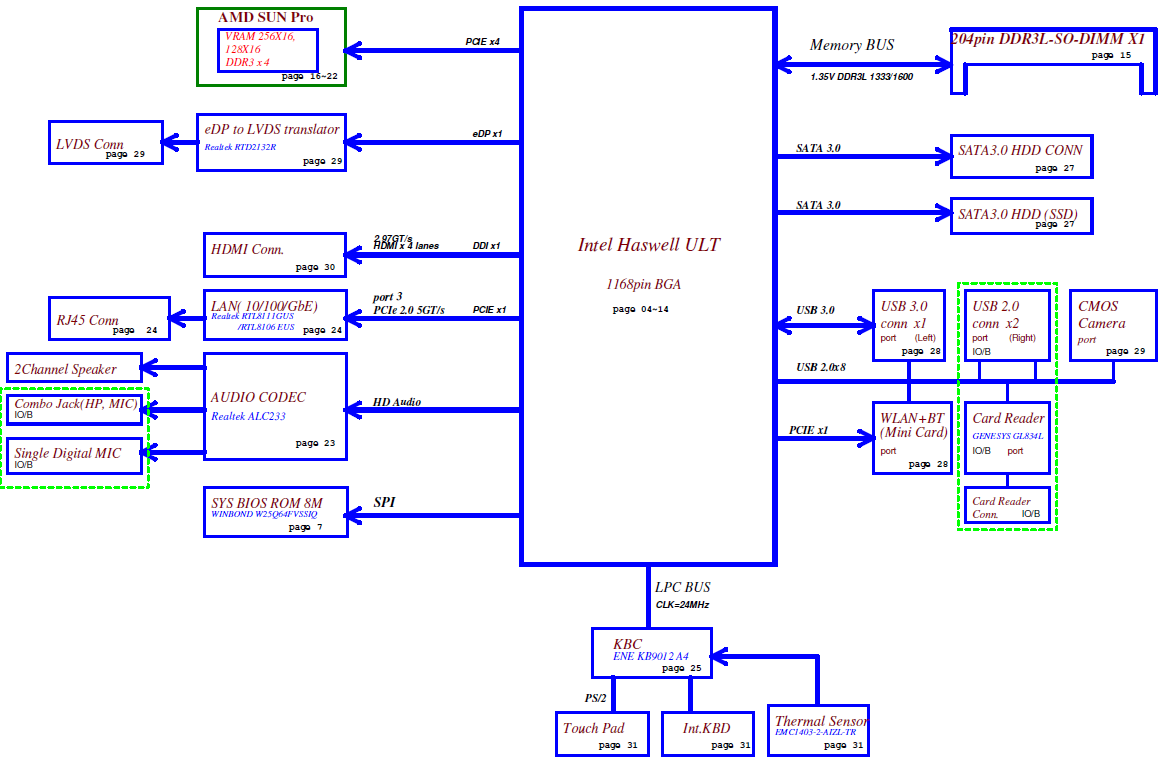

Lenovo M series laptops (Lenovo) M30-70 Laptop (lenovo), motherboard Schematic diagram

Click on picture to enlarge

Price: US $15.00

Also included:

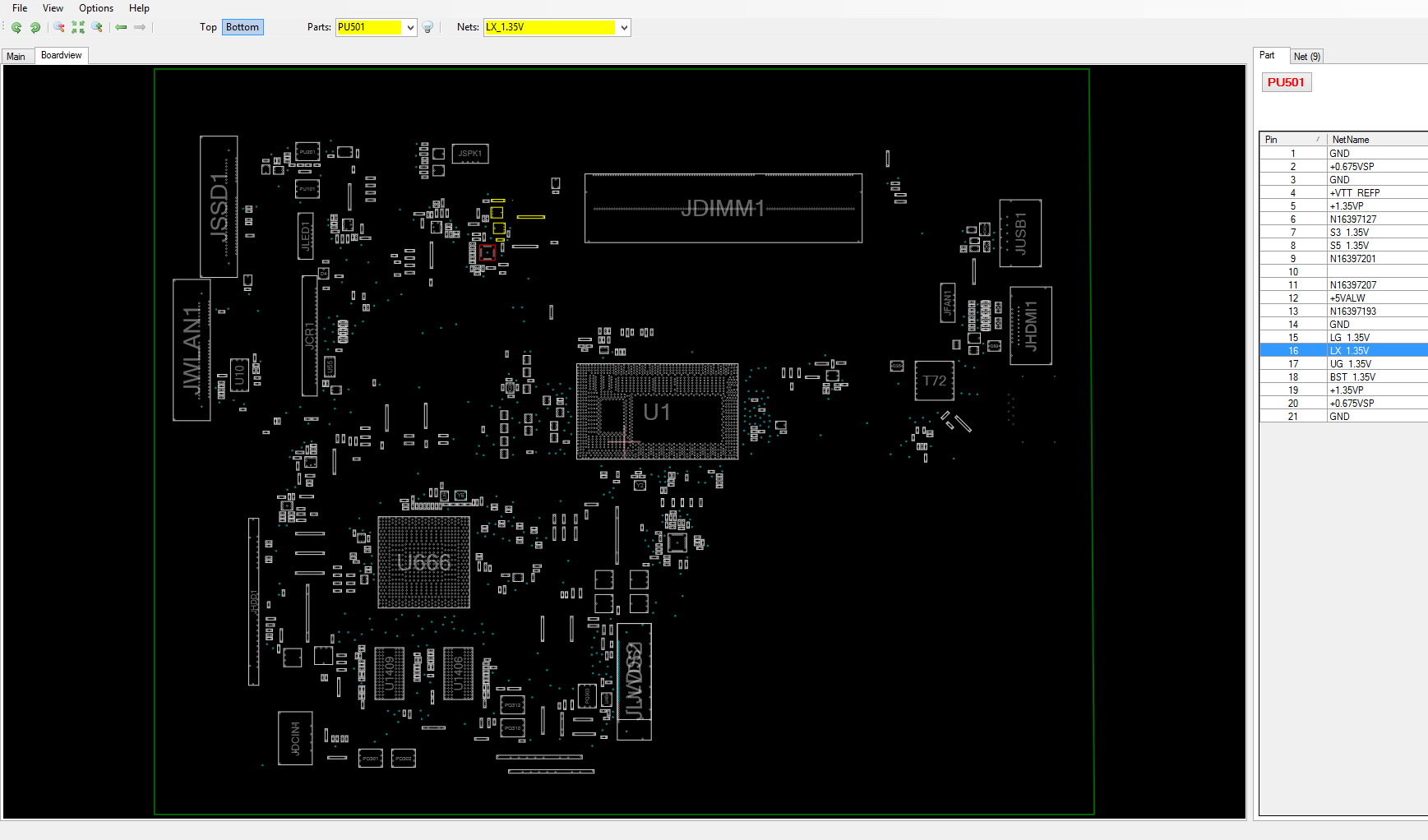

BoardView file and BoardView software
Power Sequence Timing Diagram

Major components:

Intel Haswell ULT
GPU: Integrated (UMA)/ AMD SUN Pro (DIS)
EC: ENE KB9012 A4

File type : PDF (Searchable)
Language : English
Updated: 08-02-2018
