Lenovo EDGE series laptops (ThinkPad) Edge E531 (ThinkPad), motherboard Schematic diagram

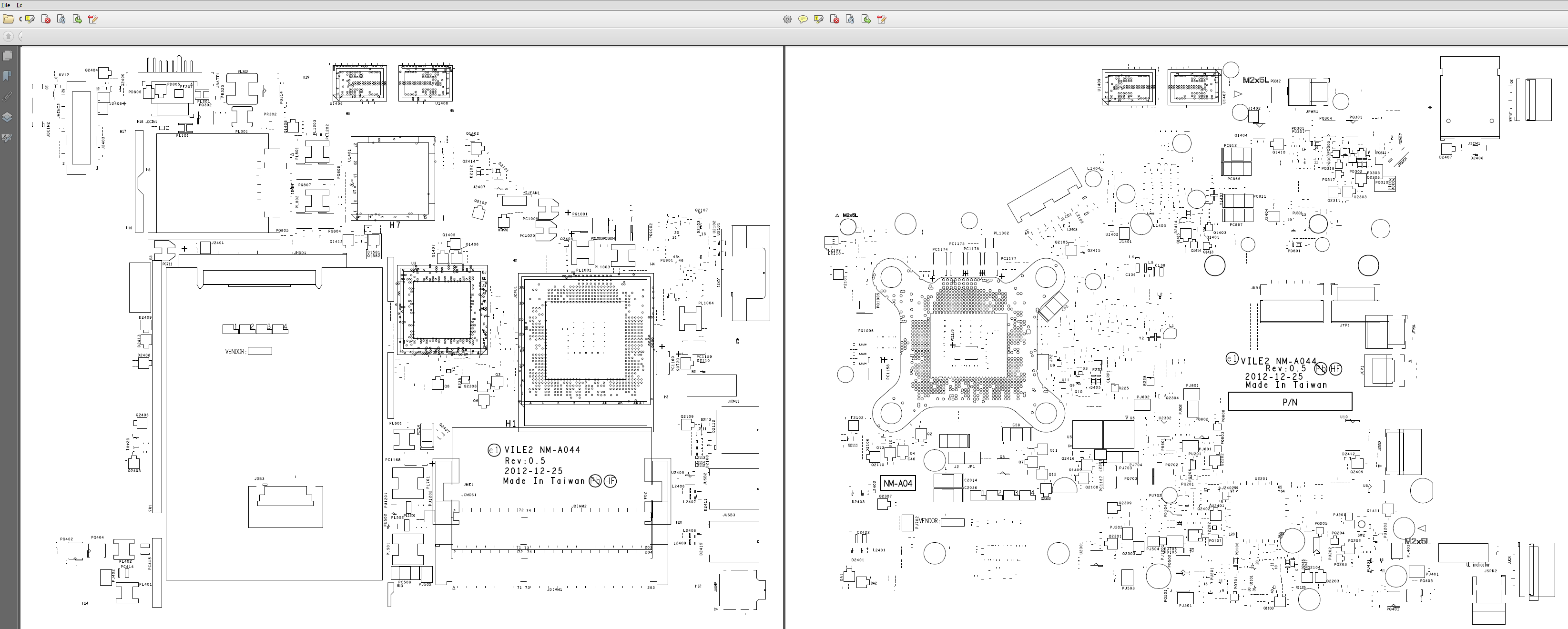

Click on picture to enlarge	Price: US $18.75 Also included: — Component Placement Diagram (Silkscreen/searchable PDF file/ Only major components are shown), it's not a boardview file such as: .TVW, .BRD etc... — Power On Sequence diagram Major components: Intel Ivy Bridge Processor with DDRIII + Panther Point PCH GPU: Integrated (UMA)/nVIDIA N14M-GL / N14P-GV2 (DIS) KBC: ENE KBC9012 File type : PDF (Searchable) Language : English

Click on picture to enlarge

Price: US $18.75

Also included:

— Component Placement Diagram (Silkscreen/searchable PDF file/
Only major components are shown), it's not a boardview file such as: .TVW, .BRD etc...
— Power On Sequence diagram

Major components:

Intel Ivy Bridge Processor with DDRIII + Panther Point PCH
GPU: Integrated (UMA)/nVIDIA N14M-GL / N14P-GV2 (DIS)
KBC: ENE KBC9012

File type : PDF (Searchable)
Language : English
