Asus EEE-series 1005HA (Eee PC 1005HA , EPC 1005HA), Laptop motherboard Schematic diagram

Click on picture to enlarge

Price: US $18.75

Also included :

*Power Flow Diagram
** Power On Sequence diagram
***"Board view" file + software(viewer). Using this tool you will be able
to find any component,pin or signal on your motherboard in a few seconds!

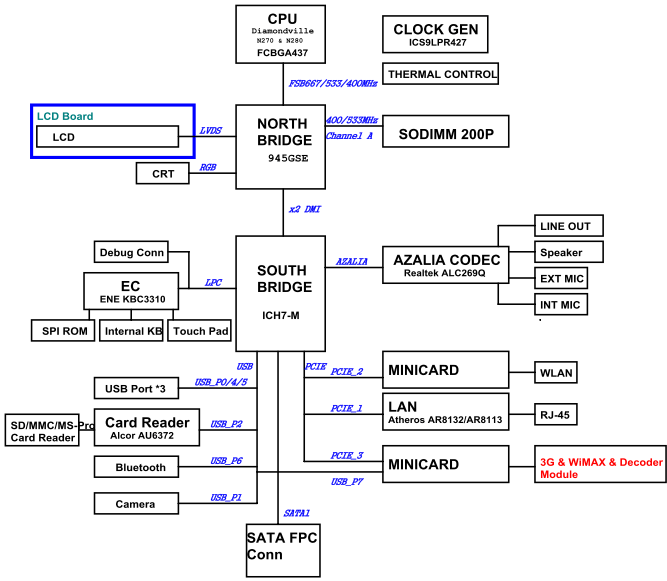

Major components

CPU : Intel Diamondville N270 & N280
Chipset : Intel 945GSE/ ICH7-M
Clock Gen : ICS9LPR427
Video: UMA
KBC(Embeded Controller),SIO : ENE KBC3310
LAN : Atheros AR8132/AR8113
CardBus Contr. : Alcor AU6372
Audio codec/AMP : Realtek ALC269Q /


File type : PDF
Language : English
Updated: 15-12-2011
Copyright © 2009-2010 www.laptop-schematics.com
