Acer Aspire ONE (NetBook) AO522, Laptop motherboard Schematic diagram

Click on picture to enlarge	Price: US $15.00 Also included : *Small Board schematic diagrams (TP and LED Boards) Major components APU / RAM : AMD Ontario FT1 / DDRIII Chipset : AMD Hudson M1 KBC(Embeded Controller) : ENE KB930 Clock Generator : Audio Codec/AMP : CX20584 LAN Controller : AR8152 Cardreader Controller : ENE 6250 / 6252 <Power System> CHARGER : G5209S31U 3VALWP/5VALWP : RT8205EGQW 1.8VSP/1.5VP: SY8033BDBC/G5603RU1U 1.1VALWP/1.0VSP: G5603RU1U/G5603RU1U 0.75VSP : APL5336KAI CPU_CORE : ISL6265CHRTZ File tipe : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Also included :

*Small Board schematic diagrams (TP and LED Boards)

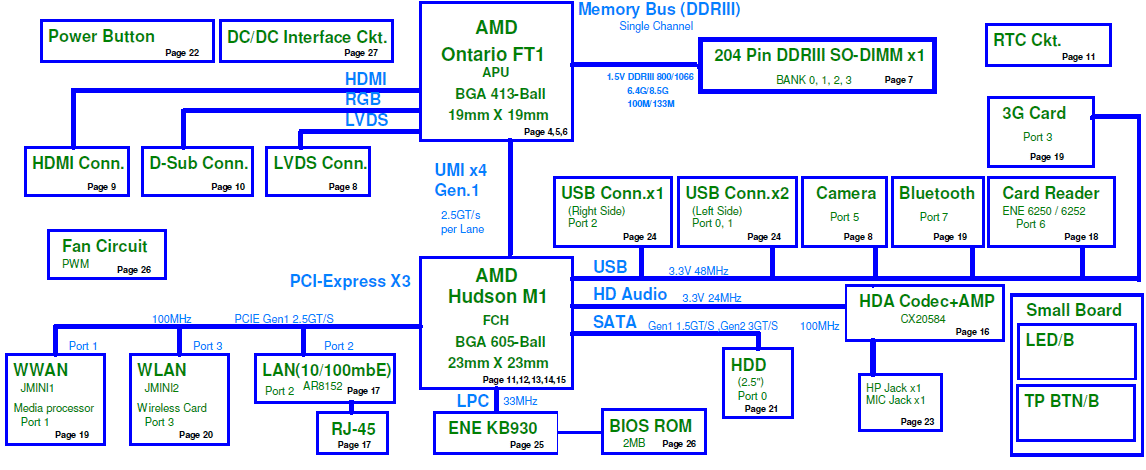

Major components

APU / RAM : AMD Ontario FT1 / DDRIII
Chipset : AMD Hudson M1
KBC(Embeded Controller) : ENE KB930
Clock Generator :
Audio Codec/AMP : CX20584
LAN Controller : AR8152
Cardreader Controller : ENE 6250 / 6252

<Power System>

CHARGER : G5209S31U
3VALWP/5VALWP : RT8205EGQW
1.8VSP/1.5VP: SY8033BDBC/G5603RU1U
1.1VALWP/1.0VSP: G5603RU1U/G5603RU1U
0.75VSP : APL5336KAI
CPU_CORE : ISL6265CHRTZ

File tipe : PDF
Language : English

Updated: 07-07-2011
