Acer Aspire ONE (NetBook) AO521, Laptop motherboard Schematic diagram

Click on picture to enlarge

Price: US $18.75

Included:

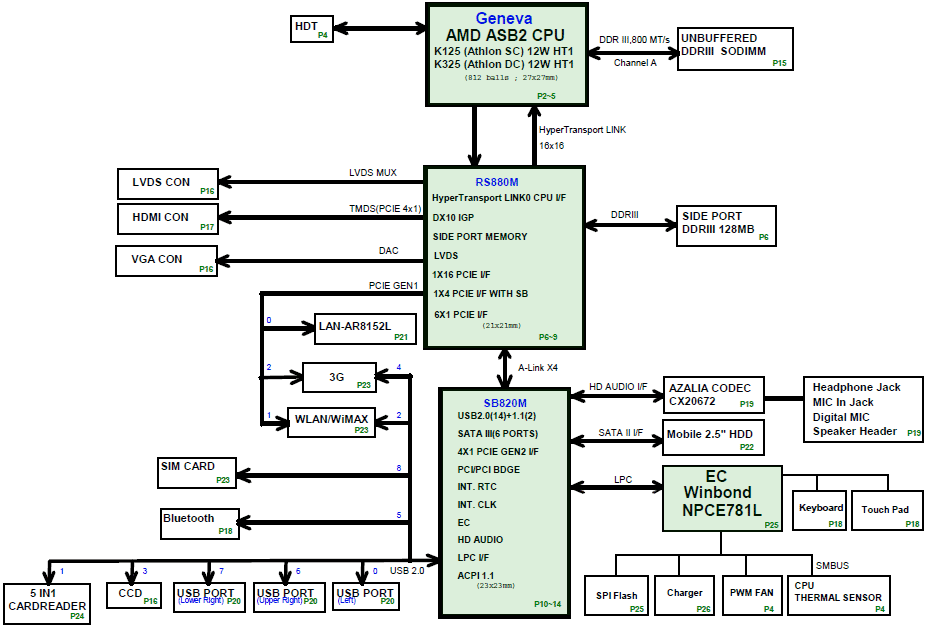

*Clock Distribution Diagram
**POWER Distribution diagram and table.
***Power On Sequence Timing diagram
****Power sequence block diagram (step-by-step)

Major components

(AMD Nile Platform)
CPU :AMD ASB2 K125 (Athlon SC) / K325 (Athlon DC)
Chipset :ATI RS880M / ATI SB820M
Video : UMA
Audio : CX20672
KBC (EC) : Winbond NPCE781L
LAN Controller :Atheros AR8152L
FireWire,Card Reader,etc :AU6437

ISL88731A
RT8206
OZ8380
UP6111AQDD
RT8207A
UP6111AQDD
HPA00835RTER
RT9025
G9091

File type : PDF
Language : English
Updated: 02-02-2011
