Acer Aspire ONE (NetBook) AO751h, Motherboard schematic diagram Schematic diagram
Click on picture to enlarge |

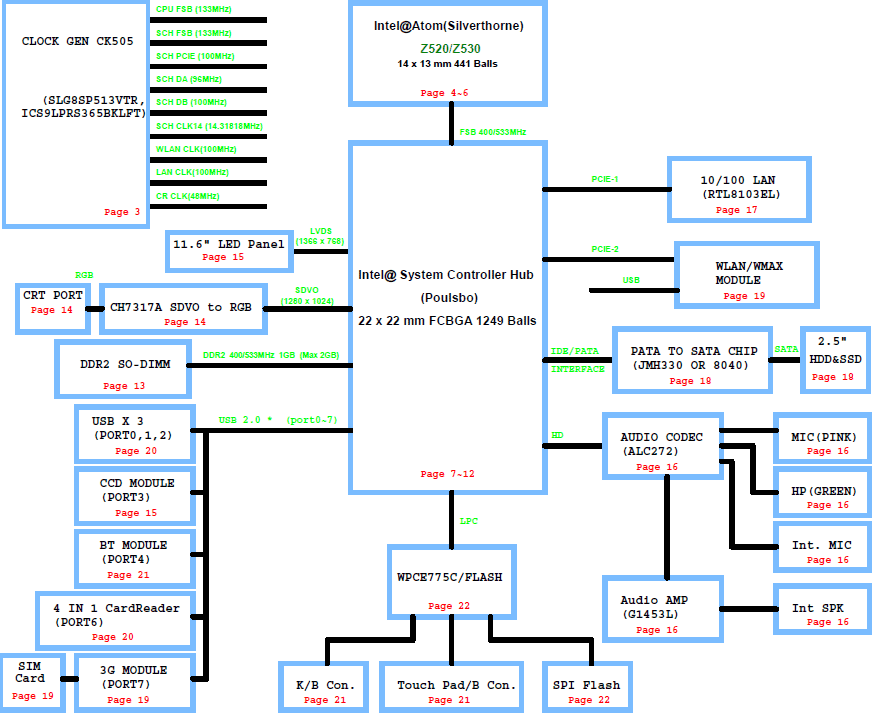

Major components CPU :Intel@Atom(Silverthorne) Z520/Z530 Chipset :Intel@ SCH US15W (Poulsboro) Clock Generator :SLG8SP513VTR (ICS9LPRS365BKLFT)CK505 Audio Codec :ALC272 Audio Amplifier :G1453L KBC(Embeded Controller),SIO :WPCE775C LAN Controller :RTL8103EL <Power System> RT9025 G9091 UP6111AQDD TPS51116REGR ISL6261A ISL6237 ISL88731 CM1293A Total Pages : 35 File type : PDF Language : English |
---|
