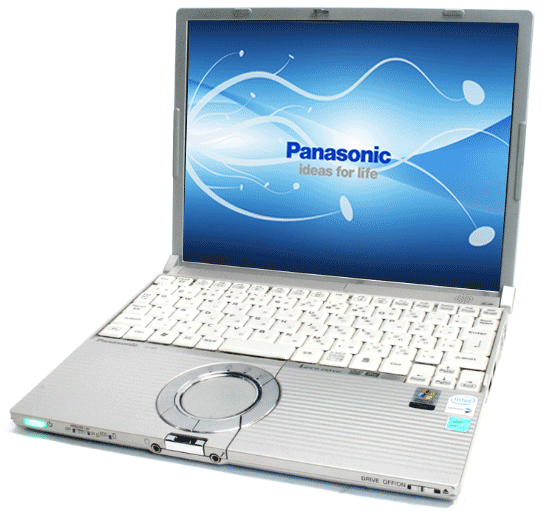

Panasonic Toughbook CF-W5, Laptop Motherboard Schematic diagram
Click on picture to enlarge |
This is the Motherboard Schematic Diagram and Service Manual for Panasonic ToughtBook CF-W5 (Intel CalistogaSFF 945GMS / ICH7M / UMA Gfx) Major components: CPU : Intel Yonah ULV Clock Generator : ICS9LPRS228CKLFT Chipset :Intel CalistogaSFF 945GMS / ICH7M Video: UMA LAN: Realtec RTL8101L EC(KBC)/SIO :Renesas M306KA Audio codec: Sigmatel STAC9200 CardBus controller : Ricoh R5C811A VCore: ISL6261 1.05V/2.5V : LTC3728 1.8V : LTC3728 1.5V : LTC3728 3.3V/5.0V : LTC3728 Charger : LTC4008 File type : PDF Language : English The Service Manual contains : 1. Specifications 2. Names and Functions of Parts 3. Block Diagram 4. Diagnosis Procedure 5. Power-On Self Test (Boot Check) 6. List of Error Codes <Only when the port replicator is connected> 7. Self Diagnosis Test 8. Wiring Connection Diagram 9. Disassembly/Reassembly 10. Exploded View 11. Replacement Parts List |
---|
