Panasonic Toughbook CF-W2, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $18.75 This is the Motherboard Schematic Diagram , Service Manual and motherboard silkscreen(top/bottom , see a picture)for Panasonic ToughtBook CF-W2 (Intel Montara 855GM / ICH4-M / UMA Gfx) Major components: CPU : Intel PM (Banias) 900Mhz Clock Generator : ICS950812CG-T (CK_TITAN) Chipset :Intel Montara 855GM / ICH4-M Video: UMA LAN: Realtec RTL8139DL EC(KBC)/SIO :MITSUBISHI M306K7 Audio codec: Sigmatel STAC9753 Audio AMP: LM4850LDX CardBus controller : Ricoh R5C576A VCore: LTC3734EUH VCCP/VCMCH : LTC3728LXCUH 1.5V/2.5V : LTC3728LXCUH 1.25V/1.5V : LTC3728LXCUH 1.5V/1.8V :R1111N151A-TR/R1111N181A-TR 3.3V/5.0V : MAX1634CAI-T Charger : MAX1772EEI File type : PDF Language : English The Service Manual contains : 1 Read Me First 1.1. Accessories 2 Specifications 3 Names and function of Parts 4 Diagnosis & Repair 4.1. Basic Procedures 4.2. Troubleshooting 4.3. Connection Diagram 4.4. Power-on Self Test (Boot Check) 5 Self Diagnosis Test 5.1. Outline of Self Diagnostic Test 5.2. Automatic Test 5.3. Peripheral Test 5.4. Test Selection 5.5. Error Messages and Troubleshooting 6 Disassembly & Reassembly Instruction 6.1. Disassembly Flow Chart 6.2. Disassembly 6.3. Reassembly 7 Explanation of Hardware 7.1. System Block Diagram 8 Main Unit Extended View 8.1. Display section 8.2. Cabinet section 9 Replacement Parts List

Click on picture to enlarge

Price: US $18.75

This is the Motherboard Schematic Diagram , Service Manual and
motherboard silkscreen(top/bottom , see a picture)for
Panasonic ToughtBook CF-W2 (Intel Montara 855GM / ICH4-M / UMA Gfx)

Major components:

CPU : Intel PM (Banias) 900Mhz
Clock Generator : ICS950812CG-T (CK_TITAN)
Chipset :Intel Montara 855GM / ICH4-M
Video: UMA
LAN: Realtec RTL8139DL
EC(KBC)/SIO :MITSUBISHI M306K7
Audio codec: Sigmatel STAC9753
Audio AMP: LM4850LDX
CardBus controller : Ricoh R5C576A

VCore: LTC3734EUH
VCCP/VCMCH : LTC3728LXCUH
1.5V/2.5V : LTC3728LXCUH
1.25V/1.5V : LTC3728LXCUH
1.5V/1.8V :R1111N151A-TR/R1111N181A-TR
3.3V/5.0V : MAX1634CAI-T
Charger : MAX1772EEI

File type : PDF
Language : English

The Service Manual contains :

1 Read Me First
1.1. Accessories
2 Specifications
3 Names and function of Parts
4 Diagnosis & Repair
4.1. Basic Procedures
4.2. Troubleshooting
4.3. Connection Diagram
4.4. Power-on Self Test (Boot Check)
5 Self Diagnosis Test
5.1. Outline of Self Diagnostic Test
5.2. Automatic Test
5.3. Peripheral Test
5.4. Test Selection
5.5. Error Messages and Troubleshooting
6 Disassembly & Reassembly Instruction
6.1. Disassembly Flow Chart
6.2. Disassembly
6.3. Reassembly
7 Explanation of Hardware

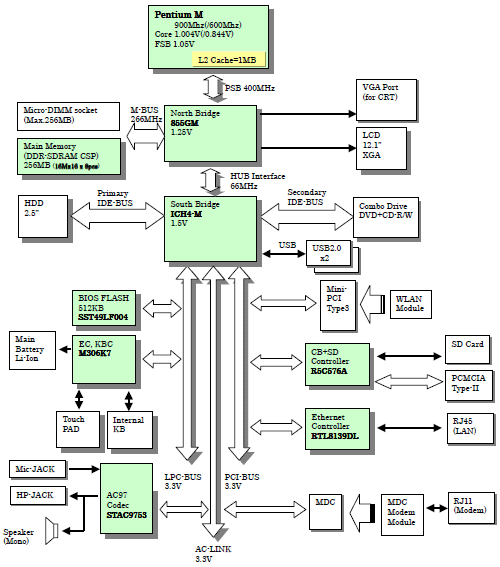

7.1. System Block Diagram
8 Main Unit Extended View
8.1. Display section
8.2. Cabinet section
9 Replacement Parts List
