Asus T13-series T13M, Motherboard Schematic diagram

Click on picture to enlarge	Price: US $17.25 Included : *Power Flow Diagram Major components CPU : AMD Sempron(Keene)\ Turion 64 Mobile Dual Core(Taylor) Chipset : nVIDIA C51MV / nVIDIA MCP51 Video: UMA KBC(Embeded Controller),SIO : IT8510E File type : PDF Language : English

Click on picture to enlarge

Price: US $17.25

Included :

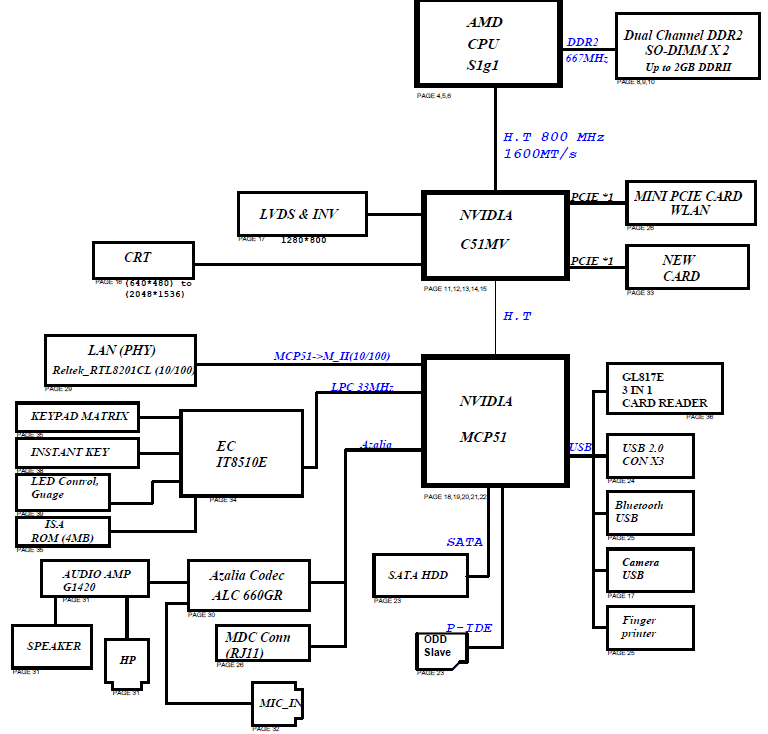

*Power Flow Diagram

Major components

CPU : AMD Sempron(Keene)\ Turion 64 Mobile Dual Core(Taylor)
Chipset : nVIDIA C51MV / nVIDIA MCP51
Video: UMA
KBC(Embeded Controller),SIO : IT8510E

File type : PDF
Language : English

Updated: 01-10-2010
