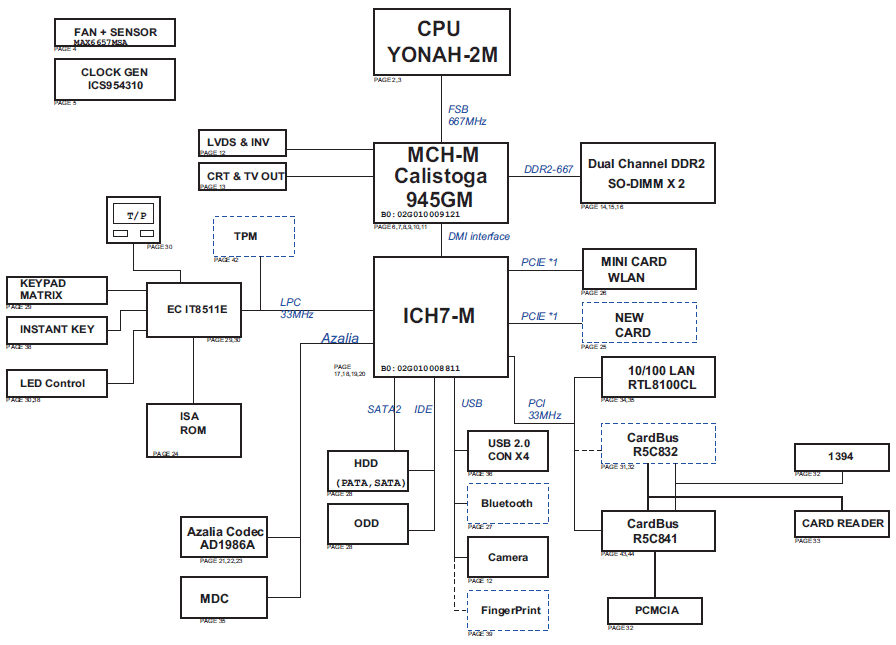

Asus T12-series T12Fh, Motherboard Schematic diagram
Click on picture to enlarge |
Included : *Power Flow Diagram ** Power On Sequence diagram ***"Board view" file + software(viewer). Using this tool you will be able to find any component,pin or signal on your motherboard in a few seconds! Major components CPU : Intel YONAH-2M Chipset : Intel Calistoga 945GM / ICH7-M Video: UMA KBC(Embeded Controller),SIO : IT8511E File type : PDF Language : English |
---|
