Asus Z9200-series Z92Vm, Laptop Motherboard Schematic diagram
Click on picture to enlarge |

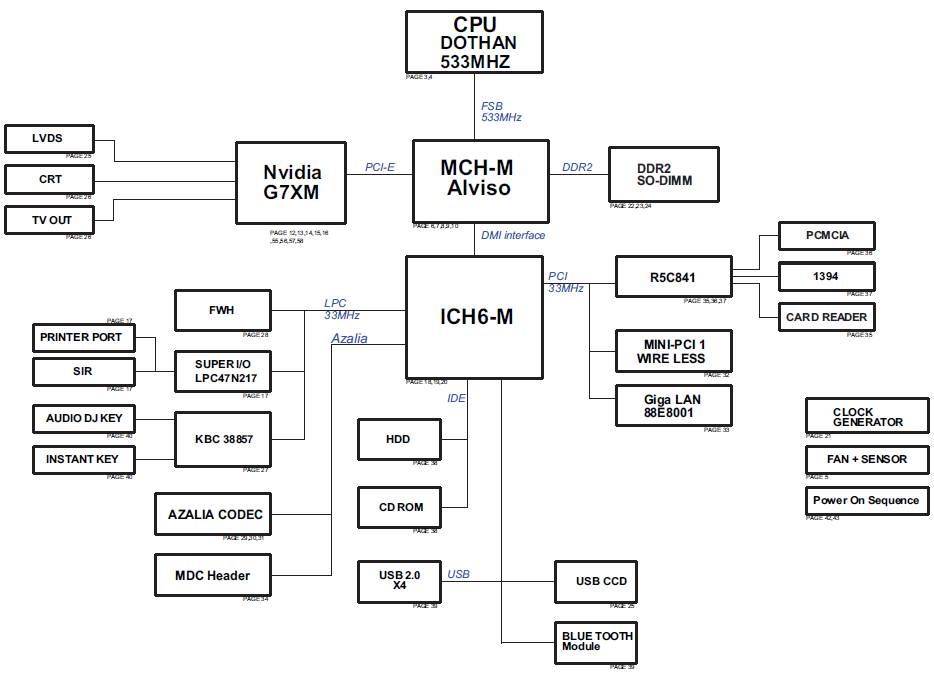

Included : *Power Block Diagram **Power Flow Diagram ***"Board view" file + software(viewer). Using this tool you will be able to find any component,pin or signal on your motherboard in a few seconds! Major components CPU :Intel PM (DOTHAN) Chipset :Intel Alviso // ICH6-M Video: nVIDIA G7XM KBC(EC),SIO :M38857, LPC47N21 File type : PDF Language : English |
---|
