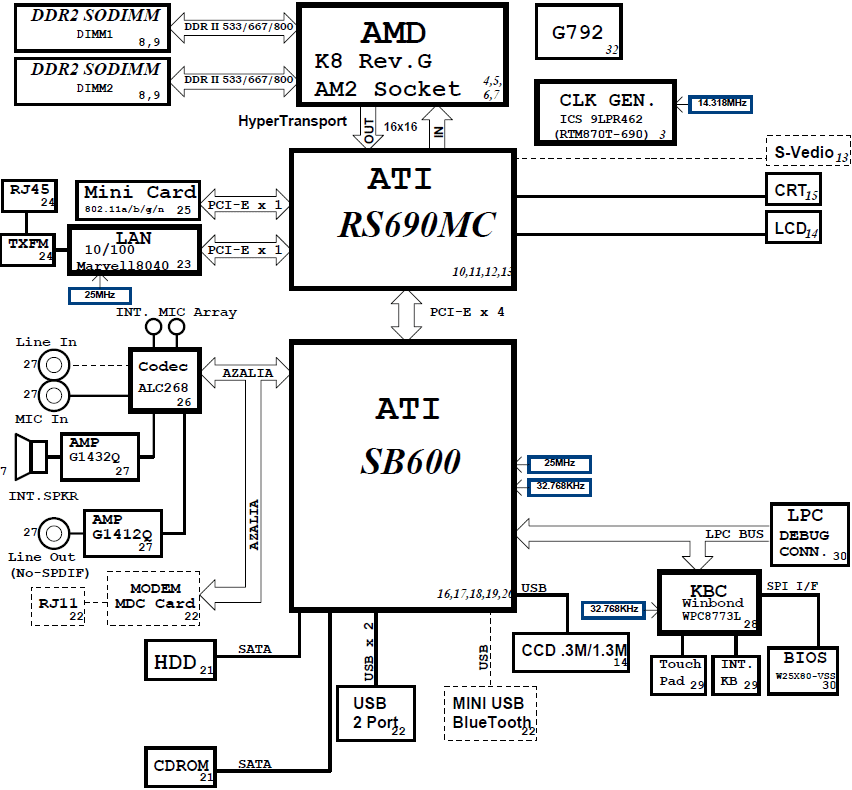

eMachines D-Series D620, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $15.00 Major components CPU :AMD K8 AM2 Socket North Bridge :ATI RS690MC South Bridge :ATI SB600 VGA :UMA Clock Generator :ICS 9LPR462 (RTM870T-690) Thermal Sensor :G792 Audio Codec :ALC268 Audio Amplifier :G1432Q,G1412Q KBC(Embeded Controller),SIO :WPC8773L LAN Controller :Marvell8040 <Power System> TPS51100DGQ APL5913 APL5332 TPS51124RGER ISL6236IRZA ISL6255HAZ G913CF G909 ISL6264CRZ TPS51120 ISL6268 Total Pages : 43 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Major components

CPU :AMD K8 AM2 Socket
North Bridge :ATI RS690MC
South Bridge :ATI SB600
VGA :UMA
Clock Generator :ICS 9LPR462 (RTM870T-690)
Thermal Sensor :G792
Audio Codec :ALC268
Audio Amplifier :G1432Q,G1412Q
KBC(Embeded Controller),SIO :WPC8773L
LAN Controller :Marvell8040

<Power System>

TPS51100DGQ
APL5913
APL5332
TPS51124RGER
ISL6236IRZA
ISL6255HAZ
G913CF
G909
ISL6264CRZ
TPS51120
ISL6268

Total Pages : 43
File tipe : PDF
Language : English

Updated: 13-12-2010
