eMachines D-Series D725, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $18.75 Major components CPU :Intel Penryn North Bridge :Intel Cantiga South Bridge :Intel ICH9M VGA :UMA Clock Generator :ICS 9LPRS365BKLFT (SILEGO SLG8SP513VTR) Thermal Sensor :EMC2102 Audio Codec :CX20561 Audio Amplifier :G1454 KBC(Embeded Controller),SIO :KBC773L LAN Controller :AR8114 / AR8132 CardBUS/1394/Cardreader Contr.:RTS5159 <Power System> TPS51125 TPS51124 RT9026 RT9018A ISL6266A BQ24745 Total Pages : 51 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $18.75

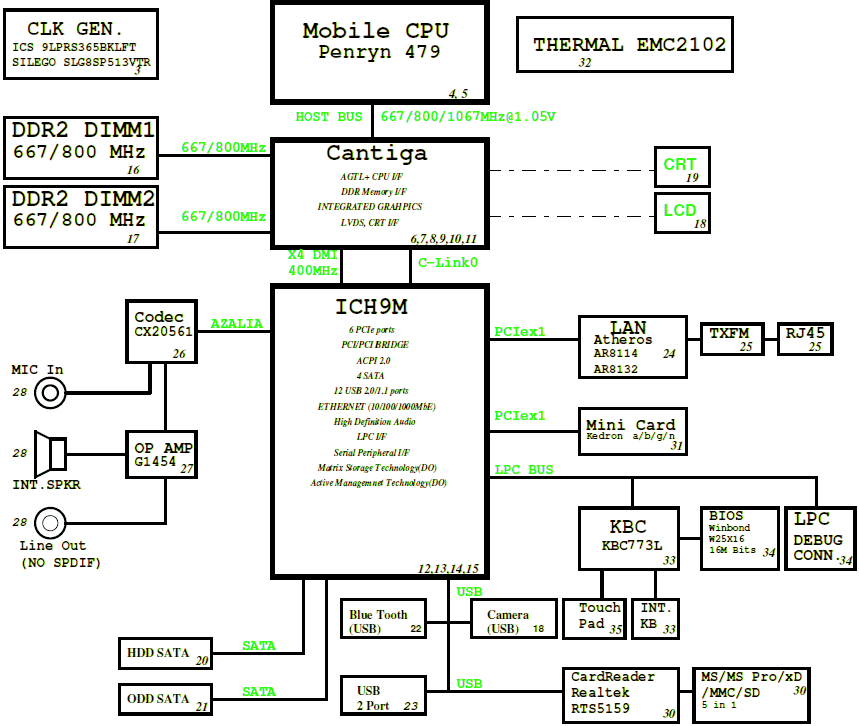

Major components

CPU :Intel Penryn
North Bridge :Intel Cantiga
South Bridge :Intel ICH9M
VGA :UMA
Clock Generator :ICS 9LPRS365BKLFT (SILEGO SLG8SP513VTR)
Thermal Sensor :EMC2102
Audio Codec :CX20561
Audio Amplifier :G1454
KBC(Embeded Controller),SIO :KBC773L
LAN Controller :AR8114 / AR8132
CardBUS/1394/Cardreader Contr.:RTS5159

<Power System>

TPS51125
TPS51124
RT9026
RT9018A
ISL6266A
BQ24745

Total Pages : 51
File tipe : PDF
Language : English

Updated: 13-12-2010
