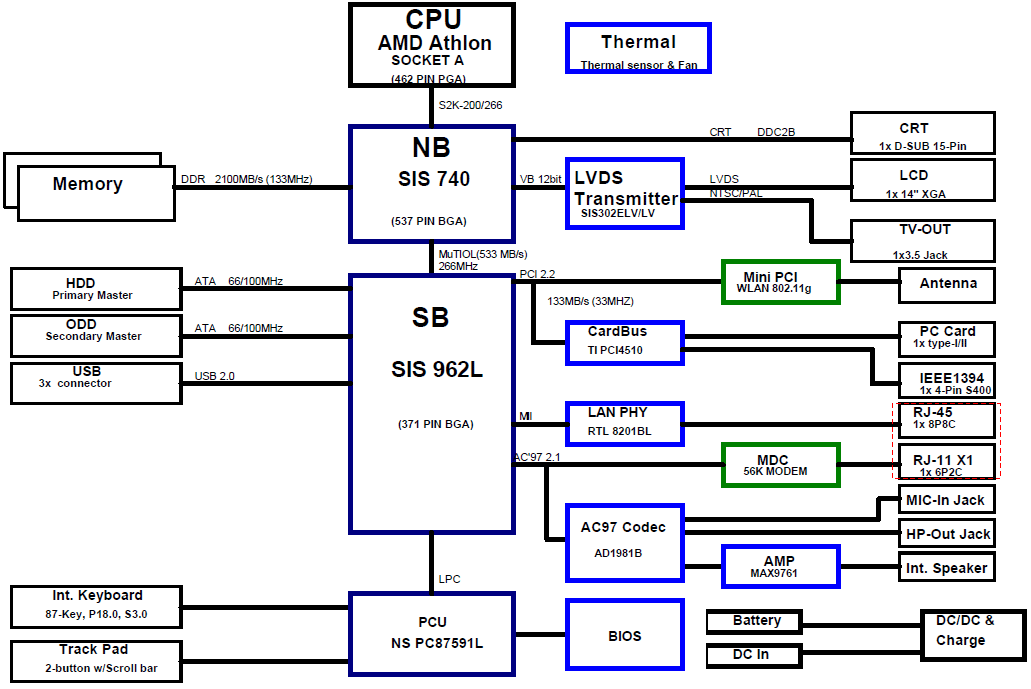

Packard Bell EasyNote C3 series, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $11.25 This schematic diagram is applicable to Packard Bell EasyNote C3xxx series Included : *"Board view" file + software(viewer). Using this tool you will be able to find any component on your motherboard in a few seconds! Major components: CPU : AMD Athlon Chipset :SIS 740 / SIS 962L Video: UMA KBC(Embeded Controller),SIO :NS PC87591L File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

This schematic diagram is applicable to Packard Bell EasyNote C3xxx series

Included :

*"Board view" file + software(viewer). Using this tool you will be able
to find any component on your motherboard in a few seconds!

Major components:

CPU : AMD Athlon
Chipset :SIS 740 / SIS 962L
Video: UMA
KBC(Embeded Controller),SIO :NS PC87591L

File type : PDF
Language : English

Updated: 21-07-2010
