Packard Bell EasyNote T5 series, Laptop Motherboard Schematic diagram

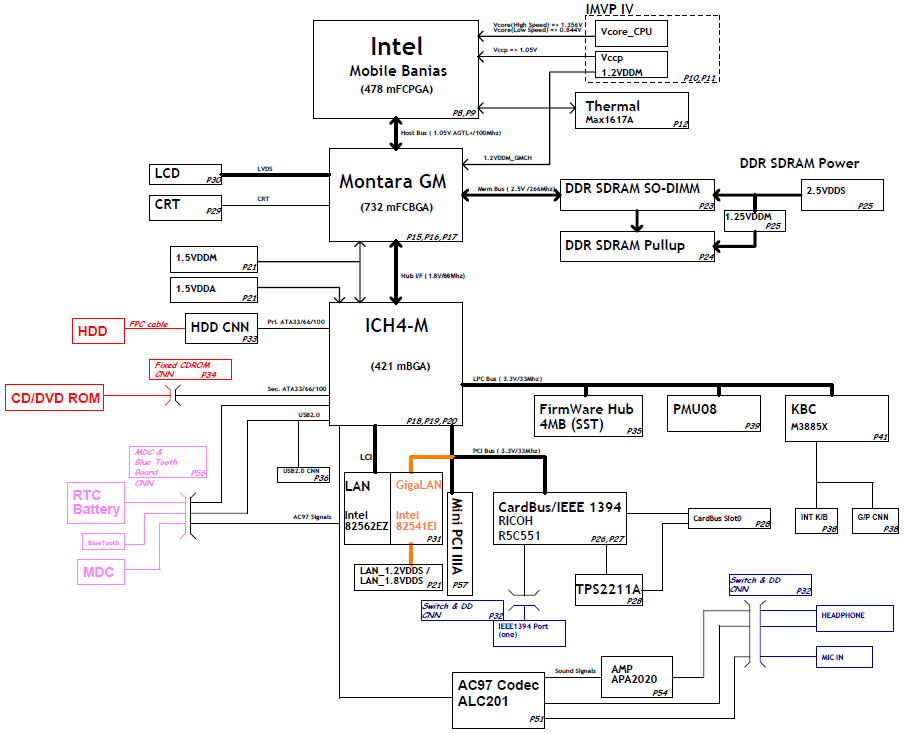

Click on picture to enlarge

Price: US $11.25

This schematic diagram is applicable to Packard Bell EasyNote T5xxx series

Major components:

CPU : Intel Pentium M (Banias)
Chipset :Montara GM / ICH4-M
Video: UMA
KBC(Embeded Controller),SIO :M3885X

File type : PDF
Language : English
Updated: 21-07-2010
