Packard Bell EasyNote E6 series, Laptop Motherboard Schematic diagram

Click on picture to enlarge

Price: US $9.75

This schematic diagram is applicable to Packard Bell EasyNote E6xxx Series

Included :

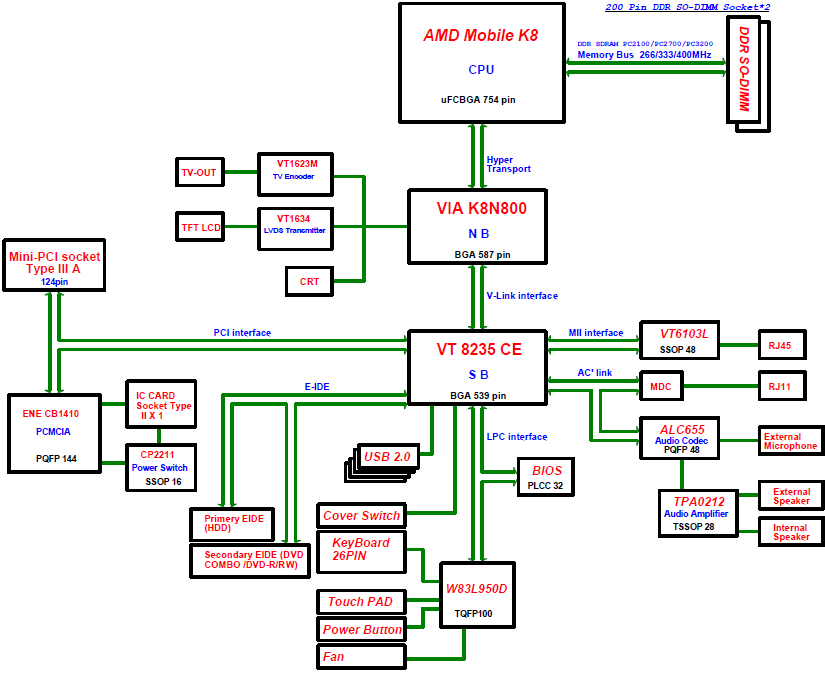

*Power Block Diagram
**Service Manual
***"Board view" file + software(viewer). Using this tool you will be able
to find any componenton your motherboard in a few seconds!

Major components:

CPU : AMD Mobile K8
Chipset :VIA K8N800 // VT8235CE
Video: UMA
KBC(Embeded Controller),SIO : W83L950D

File type : PDF
Language : English
Updated: 24-07-2010
