Acer TravelMate 4530, Motherboard schematic diagram Schematic diagram
Click on picture to enlarge |

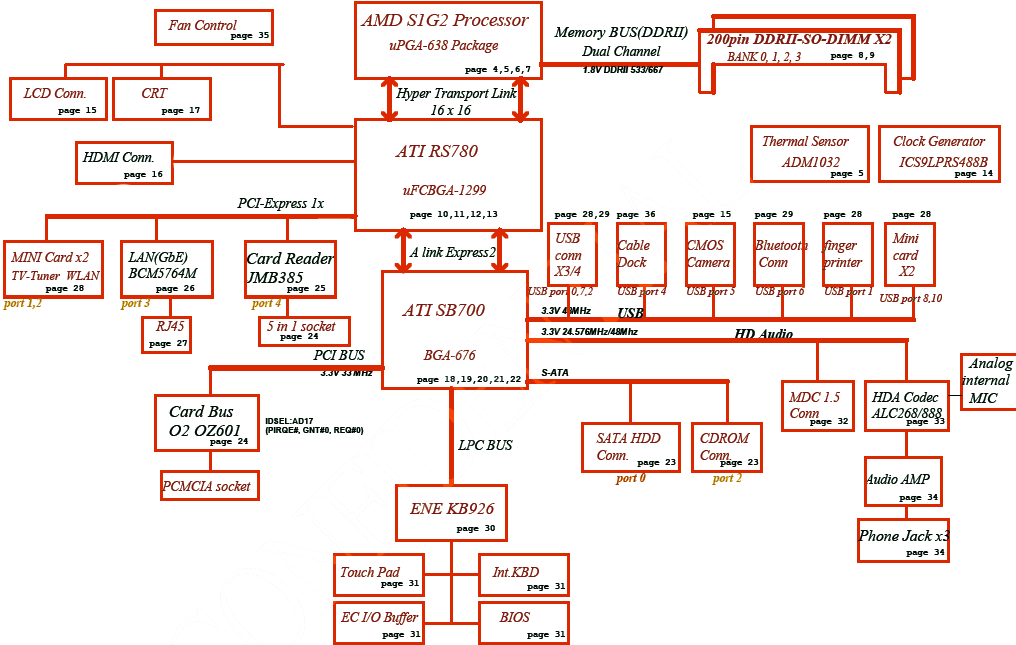

<< For JALC0 LA-4182P motherboard ONLY >> Major components CPU :AMD Griffin North Bridge :ATI RS780 South Bridge :ATI SB700 VGA :UMA Clock Generator :ICS9LPRS488B Thermal Sensor :ADM1032 Audio Codec :ALC268/888 Audio Amplifier :APA2057A KBC(Embeded Controller),SIO :ENE KB926 LAN Controller :BCM5764M CardBUS/1394/Cardreader Contr.:O2 OZ601,JMB385 <Power System> ISL6265IRZ APL5915KAI APL5508 APL5331KAC TPS51117RGYR APL5912 ISL6228HRTZ BQ24751ARHDR ISL6237IRZ Total Pages : 48 File tipe : PDF Language : English |
---|
