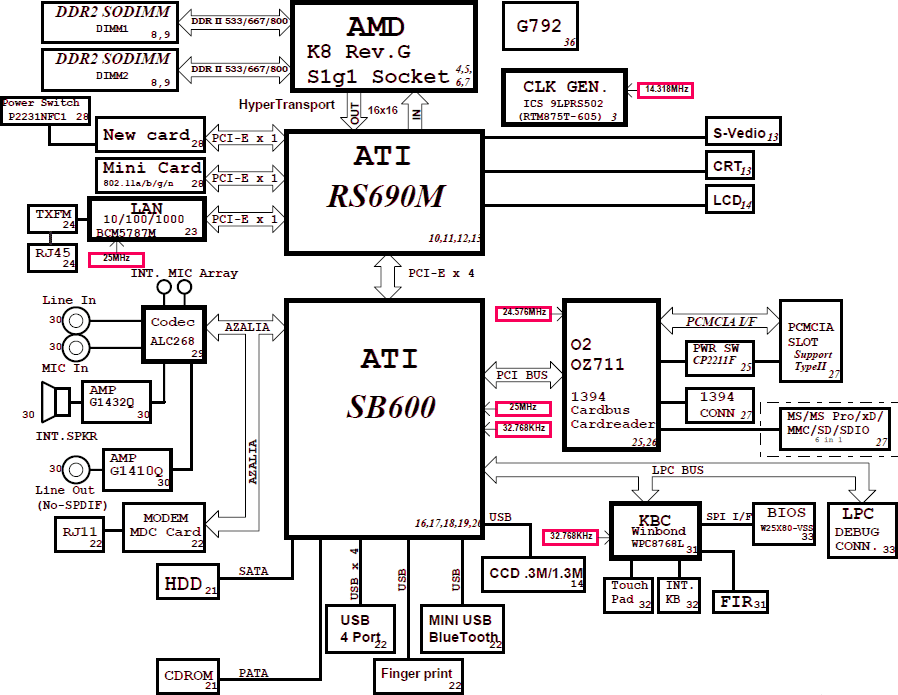

Acer TravelMate 4520, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $15.00 Major components CPU :AMD K8 S1g1 North Bridge :ATI RS690M South Bridge :ATI SB600 VGA :UMA Clock Generator :ICS 9LPRS502 (RTM875T-605) Thermal Sensor :G792 Audio Codec :ALC268 Audio Amplifier :G1432Q,G1410Q KBC(Embeded Controller),SIO :WPC8768L LAN Controller :BCM5787M CardBUS/1394/Cardreader Contr.:OZ711 <Power System> SC10U10V5ZY APL5915 APL5913 APL5915 TPS51124RGER ISL6236IRZA ISL6255HAZ G913CF ISL6264CRZ TPS51120 TPS51116 Total Pages : 46 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Major components

CPU :AMD K8 S1g1
North Bridge :ATI RS690M
South Bridge :ATI SB600
VGA :UMA
Clock Generator :ICS 9LPRS502 (RTM875T-605)
Thermal Sensor :G792
Audio Codec :ALC268
Audio Amplifier :G1432Q,G1410Q
KBC(Embeded Controller),SIO :WPC8768L
LAN Controller :BCM5787M
CardBUS/1394/Cardreader Contr.:OZ711

<Power System>

SC10U10V5ZY
APL5915
APL5913
APL5915
TPS51124RGER
ISL6236IRZA
ISL6255HAZ
G913CF
ISL6264CRZ
TPS51120
TPS51116

Total Pages : 46
File tipe : PDF
Language : English

Updated: 09-01-2010
