Acer TravelMate 3000, Motherboard schematic diagram Schematic diagram

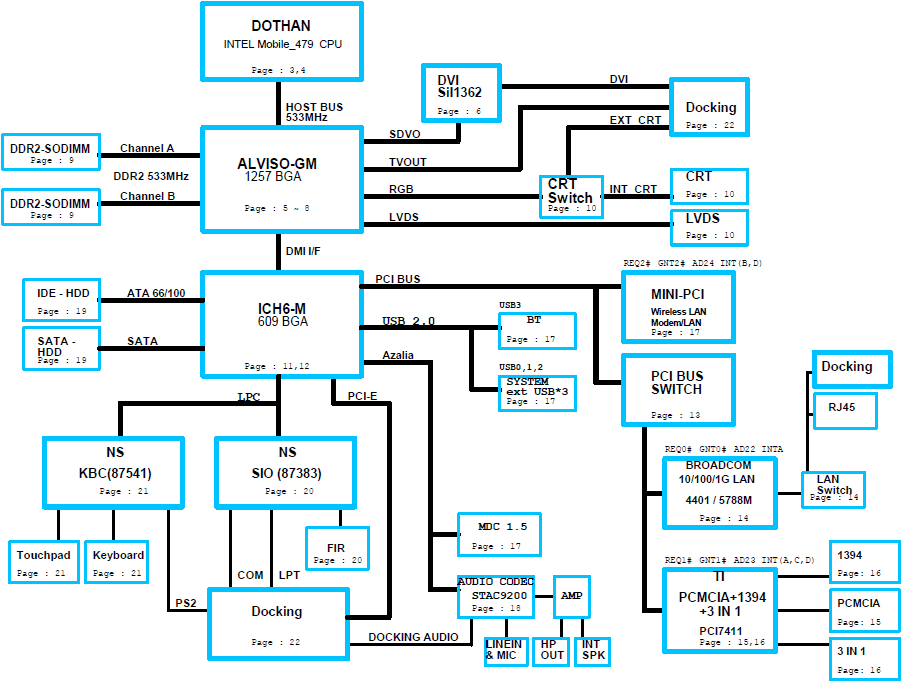

Click on picture to enlarge	Price: US $11.25 Major components CPU :INTEL Mobile DOTHAN North Bridge :ALVISO-GM South Bridge :ICH6-M VGA :UMA Clock Generator :ICS954206 Thermal Sensor : Audio Codec :STAC9200 Audio Amplifier :MAX9755 KBC(Embeded Controller),SIO :PC87541,PC87383 LAN Controller :Broadcom 4401 / 5788M CardBUS/1394/Cardreader Contr.:PCI7411 <Power System> MAX8724 MAX1714A MAX1714A TPS51116 G965 MAX1999 MAX1907A Total Pages : 27 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Major components

CPU :INTEL Mobile DOTHAN
North Bridge :ALVISO-GM
South Bridge :ICH6-M
VGA :UMA
Clock Generator :ICS954206
Thermal Sensor :
Audio Codec :STAC9200
Audio Amplifier :MAX9755
KBC(Embeded Controller),SIO :PC87541,PC87383
LAN Controller :Broadcom 4401 / 5788M
CardBUS/1394/Cardreader Contr.:PCI7411

<Power System>

MAX8724
MAX1714A
MAX1714A
TPS51116
G965
MAX1999
MAX1907A

Total Pages : 27
File tipe : PDF
Language : English
