Asus K70-series K70IJ, Laptop Motherboard Schematic diagram

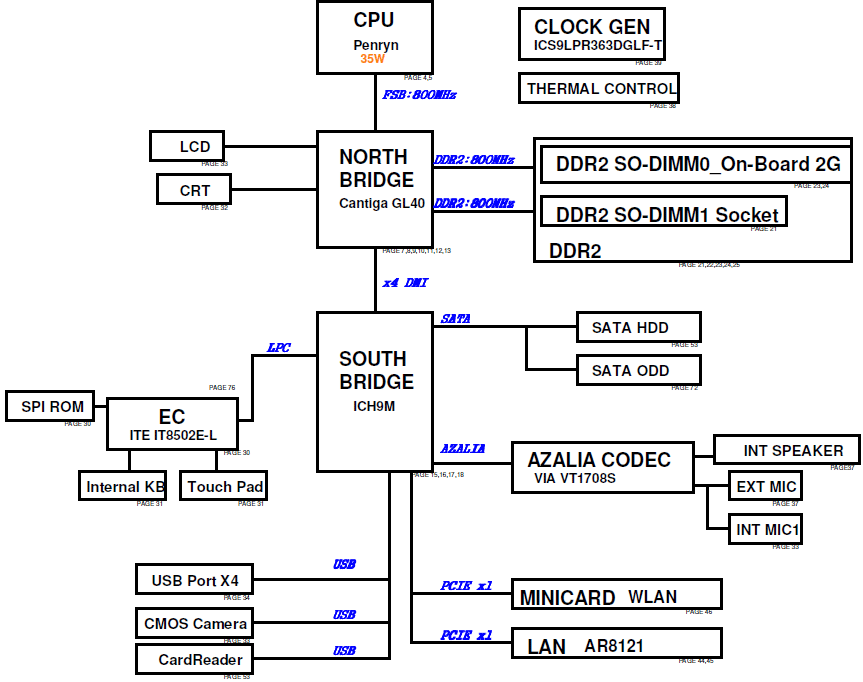

Click on picture to enlarge	Price: US $18.75 Included: * Power Flow diagram ** Power Sequence Diagram Major components CPU : Intel Penryn Chipset : Intel Cantiga GL40 // ICH9-M Video: UMA KBC(Embeded Controller),SIO :ITE IT8502E-L File type : PDF Language : English

Click on picture to enlarge

Price: US $18.75

Included:

* Power Flow diagram
** Power Sequence Diagram

Major components

CPU : Intel Penryn
Chipset : Intel Cantiga GL40 // ICH9-M
Video: UMA
KBC(Embeded Controller),SIO :ITE IT8502E-L

File type : PDF
Language : English

Updated: 14-06-2010
