Acer TravelMate C110, Motherboard schematic diagram Schematic diagram

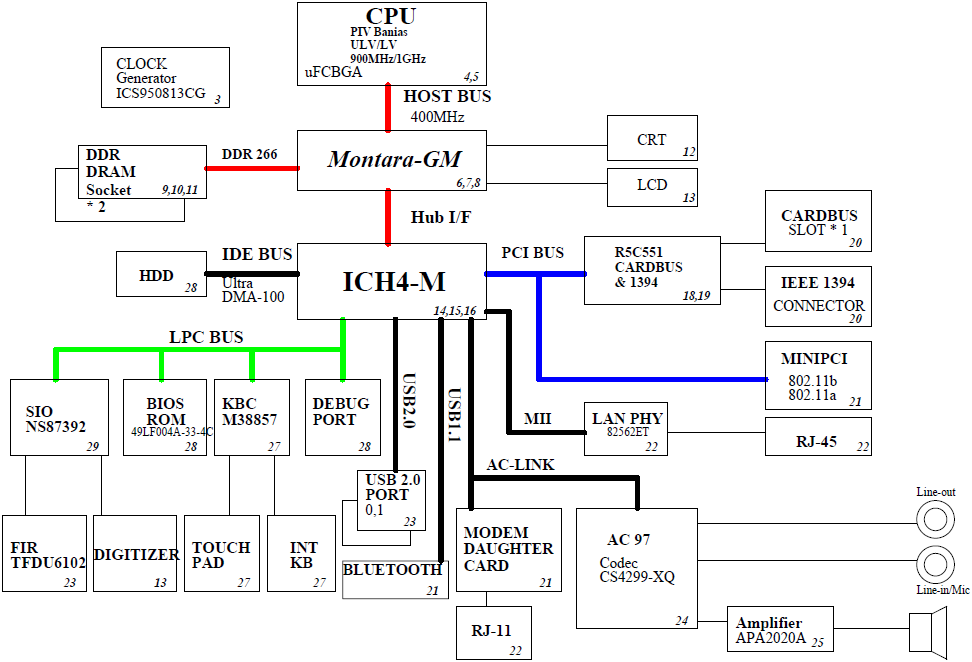

Click on picture to enlarge	Price: US $11.25 Major components CPU :Intel PIV Banias ULV/LV 900MHz/1GHz North Bridge :Intel Montara-GM South Bridge :Intel ICH4-M VGA :UMA Clock Generator :ICS950813CG Thermal Sensor :G768D Audio Codec :CS4299-XQ Audio Amplifier :APA2020A KBC(Embeded Controller),SIO :M38857,NS87392 LAN Controller :82562ET CardBUS/1394/Cardreader Contr.:R5C551 <Power System> Max1907AETL TPS5110 Max1645 TPS5130 CM8500 APL1805 Total Pages : 39 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Major components

CPU :Intel PIV Banias ULV/LV 900MHz/1GHz
North Bridge :Intel Montara-GM
South Bridge :Intel ICH4-M
VGA :UMA
Clock Generator :ICS950813CG
Thermal Sensor :G768D
Audio Codec :CS4299-XQ
Audio Amplifier :APA2020A
KBC(Embeded Controller),SIO :M38857,NS87392
LAN Controller :82562ET
CardBUS/1394/Cardreader Contr.:R5C551

<Power System>

Max1907AETL
TPS5110
Max1645
TPS5130
CM8500
APL1805

Total Pages : 39
File tipe : PDF
Language : English
