Asus UX30-series UX30, Laptop Motherboard Schematic diagram
|
|

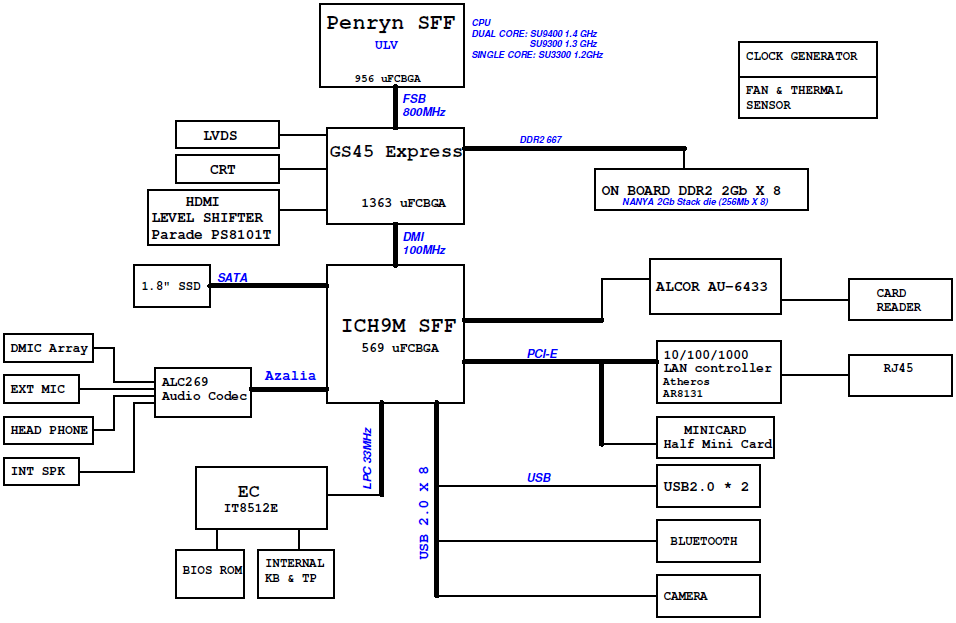

Price: US $17.25 * Power On Sequence diagram * POWER FLOW Diagram * All small (I/O) board schematic diagrams . Such as: DC-IN , USB , Power/LED and Touchpad boards Major components CPU : Intel Penryn SFF ULV Chipset : Intel GS45 Express/ ICH9-M SFF Video: UMA KBC(Embeded Controller),SIO :IT8512E File type : PDF Language : English |
|---|
Click on picture to enlarge
