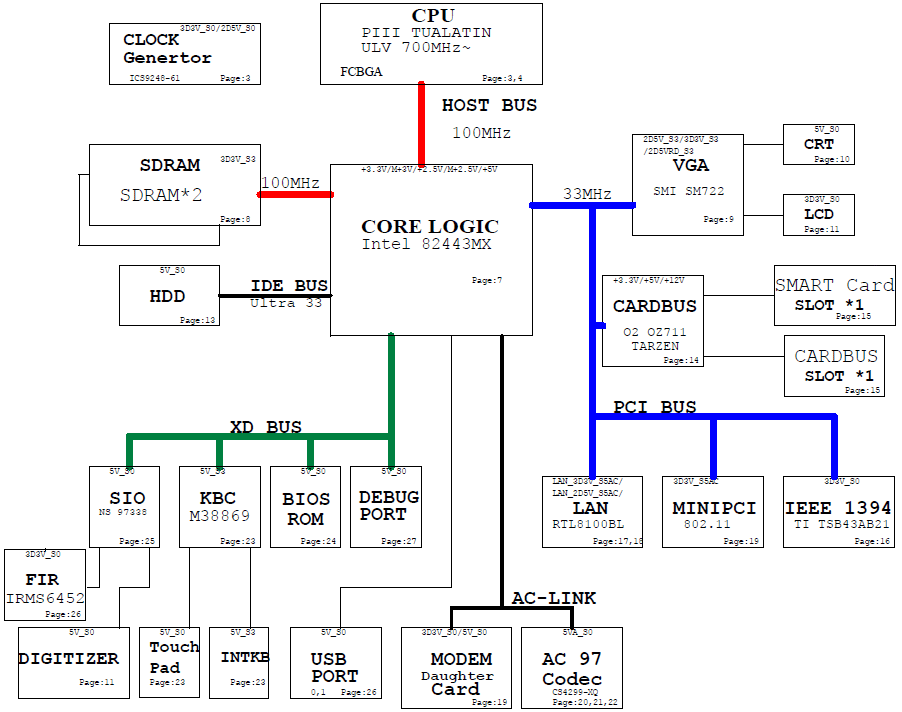

Acer TravelMate C100, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $11.25 Major components CPU :PIII TUALATIN ULV 700MHz~ North Bridge :Intel 82443MX South Bridge :Intel 82443MX VGA :SMI SM722 Clock Generator :ICS9248-61 Thermal Sensor :G768C Audio Codec :CS4299-XQ Audio Amplifier :APA2020 KBC(Embeded Controller),SIO :M38869,NS 97338 LAN Controller :RTL8100BL CardBUS/1394/Cardreader Contr.:TI TSB43AB21,O2 OZ711 <Power System> MAX1718 MAX1714 MAX1632 OZT05J02 MAX1792 G913 Total Pages : 35 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Major components

CPU :PIII TUALATIN ULV 700MHz~
North Bridge :Intel 82443MX
South Bridge :Intel 82443MX
VGA :SMI SM722
Clock Generator :ICS9248-61
Thermal Sensor :G768C
Audio Codec :CS4299-XQ
Audio Amplifier :APA2020
KBC(Embeded Controller),SIO :M38869,NS 97338
LAN Controller :RTL8100BL
CardBUS/1394/Cardreader Contr.:TI TSB43AB21,O2 OZ711

<Power System>

MAX1718
MAX1714
MAX1632
OZT05J02
MAX1792
G913

Total Pages : 35
File tipe : PDF
Language : English
