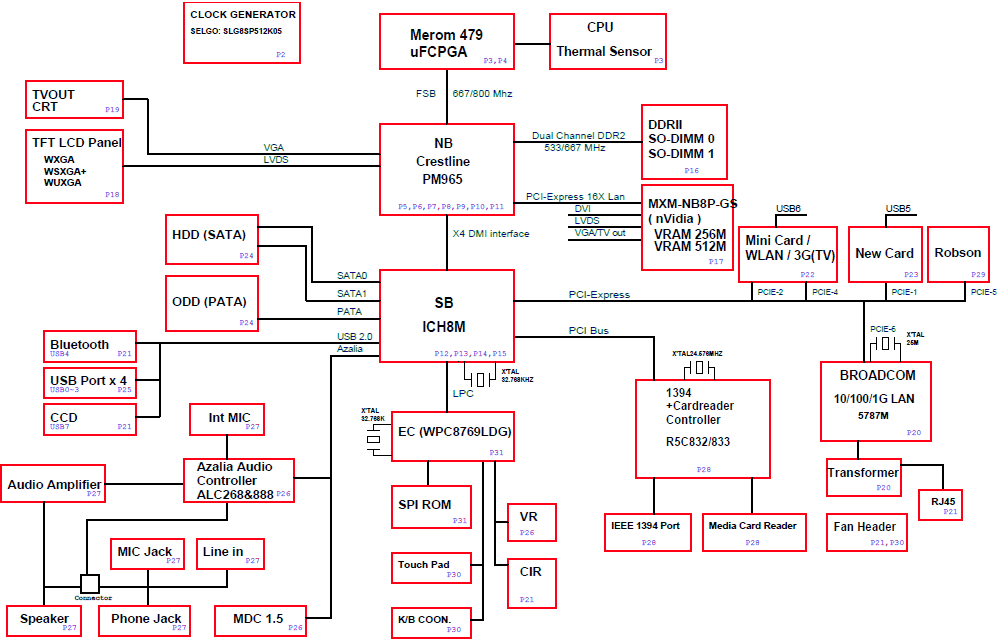

Acer Aspire 5920, Motherboard schematic diagram Schematic diagram
Click on picture to enlarge |
Major components CPU :Intel Merom North Bridge :Intel Crestline PM965 South Bridge :Intel ICH8M VGA :nVidia MXM-NB8P-GS 256/512Mb Clock Generator :SLG8SP512K05 Thermal Sensor :MAX6657 Audio Codec :ALC268 / ALC888 Audio Amplifier :G1441 KBC(Embeded Controller),SIO :WPC8769LDG LAN Controller :Broadcom 5787M CardBUS/1394/Cardreader Contr.:R5C832 / R5C833 <Power System> TPS51116 SC411MLTRT ISL6262A ISL6236 ISL6251A Total Pages : 38 File tipe : PDF Language : English |
---|
