Asus Z83-series Z83K, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $15.00 !!! Board view included. Locate any component and get the comprehensive information about it in few seconds !!! !!! Power Flow Chart, Power On Sequence and Clock Distribution diagram are included Major components CPU : AMD Thermal Sensor : MAX6657MSA Chipset : ATI RS690M / SB600 Video: ATI M76-M Clock Generator : Audio Codec :ALC 660 Audio Amplifier :G1420F31UF x2 KBC(Embeded Controller),SIO :EC IT8511E / ITEIT8712F_IX LAN Controller :RTL8111B Card BUS etc...:R5C833 <Power System> MIC5235 UMC4N UMC4N CM8562 PMN45EN FDW2501 SI9183DT LM4040BIM FDW2501 FDW2501 TPS51020 SI9183DT SI4800 PMN45EN PMN45EN ISL6227 CM8562 FDS2501 MAX8632 MAX8632 MAX8760 Total Pages :69 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

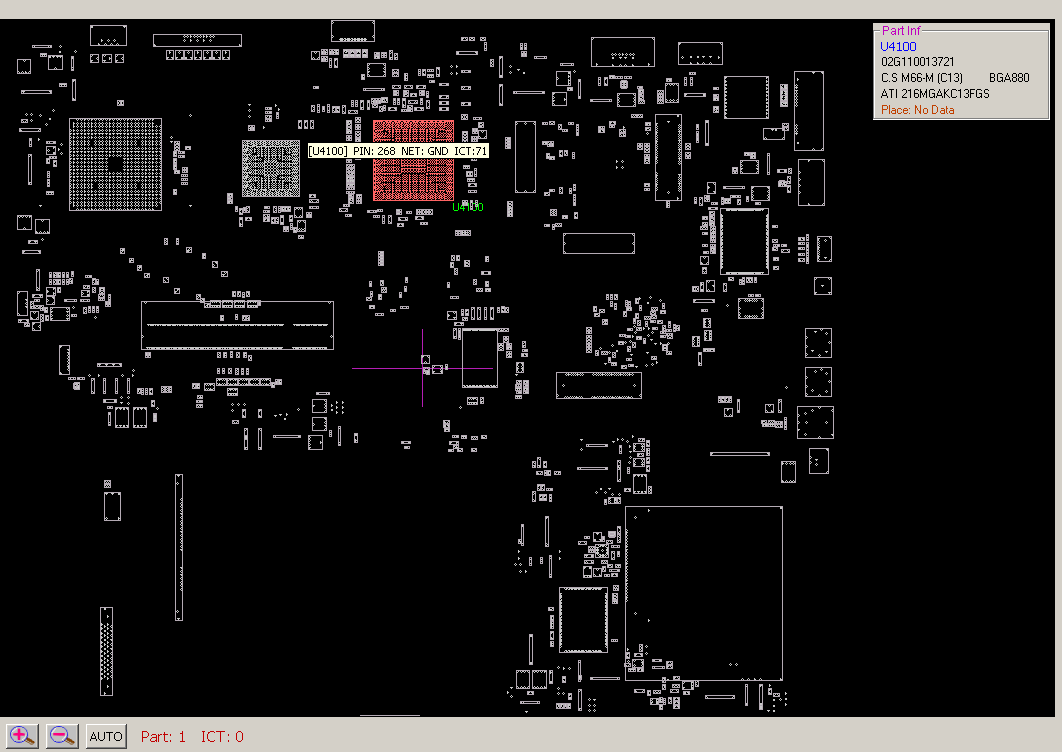

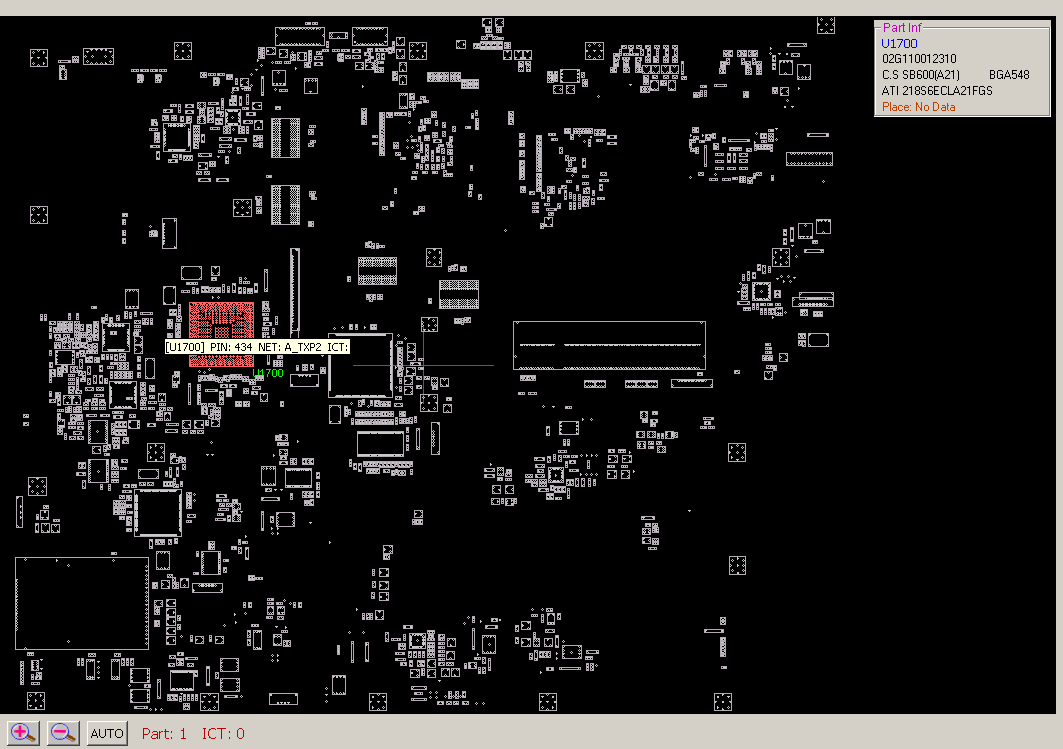

!!! Board view included. Locate any component and get the comprehensive
information about it in few seconds !!!

!!! Power Flow Chart, Power On Sequence and Clock Distribution diagram are included

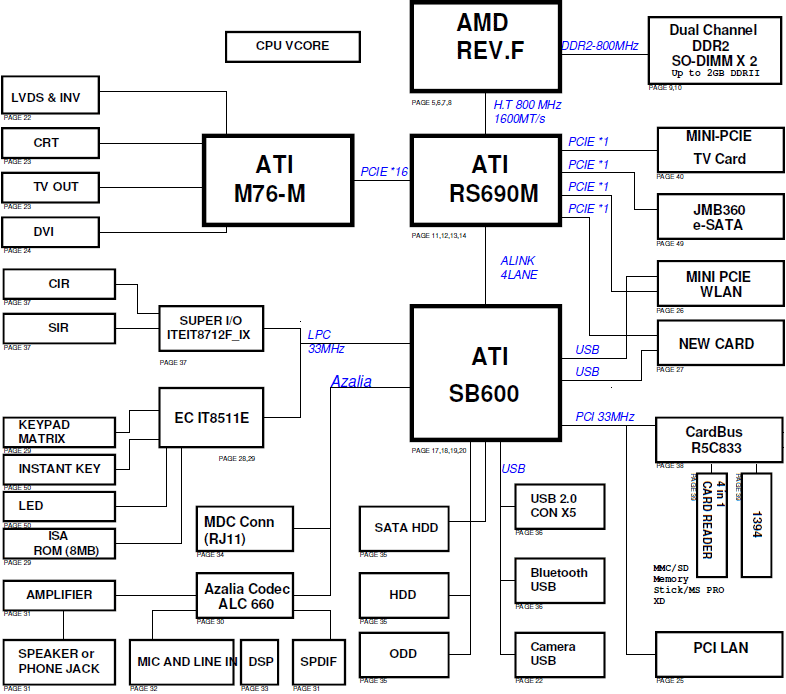

Major components

CPU : AMD
Thermal Sensor : MAX6657MSA
Chipset : ATI RS690M / SB600
Video: ATI M76-M
Clock Generator :
Audio Codec :ALC 660
Audio Amplifier :G1420F31UF x2
KBC(Embeded Controller),SIO :EC IT8511E / ITEIT8712F_IX
LAN Controller :RTL8111B
Card BUS etc...:R5C833

<Power System>

MIC5235
UMC4N
UMC4N
CM8562
PMN45EN
FDW2501
SI9183DT
LM4040BIM
FDW2501
FDW2501
TPS51020
SI9183DT
SI4800
PMN45EN
PMN45EN
ISL6227
CM8562
FDS2501
MAX8632
MAX8632
MAX8760

Total Pages :69
File type : PDF
Language : English

Updated: 20-04-2010
