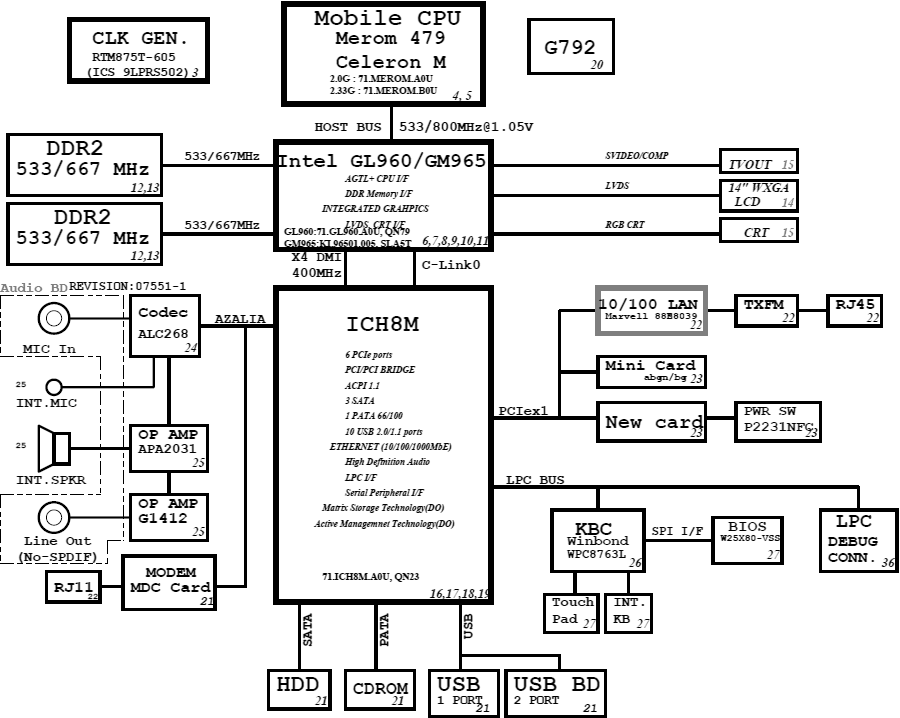

Acer Aspire 4315, Motherboard Schematic diagram

Click on picture to enlarge

Price: US $9.75

Major components

CPU :Intel Merom Celeron M
North Bridge :Intel GL960/GM965
South Bridge :ICH8M
VGA :UMA
Clock Generator :RTM875T-605 (ICS 9LPRS502)
Thermal Sensor :G792
Audio Codec :ALC268
Audio Amplifier :APA2031,G1412
KBC(Embeded Controller),SIO :WPC8763L
LAN Controller :Marvell 88E8039
CardBUS/1394/Cardreader Contr.:

<Power System>

MAX8744
TPS51124
TPS51100(G2997)
APL5913
G909
APL5915
MAX8731
MAX8770

Total Pages : 36
File type : PDF
Language : English
Updated: 17-02-2010
