Acer TravelMate 2460, Motherboard schematic diagram Schematic diagram

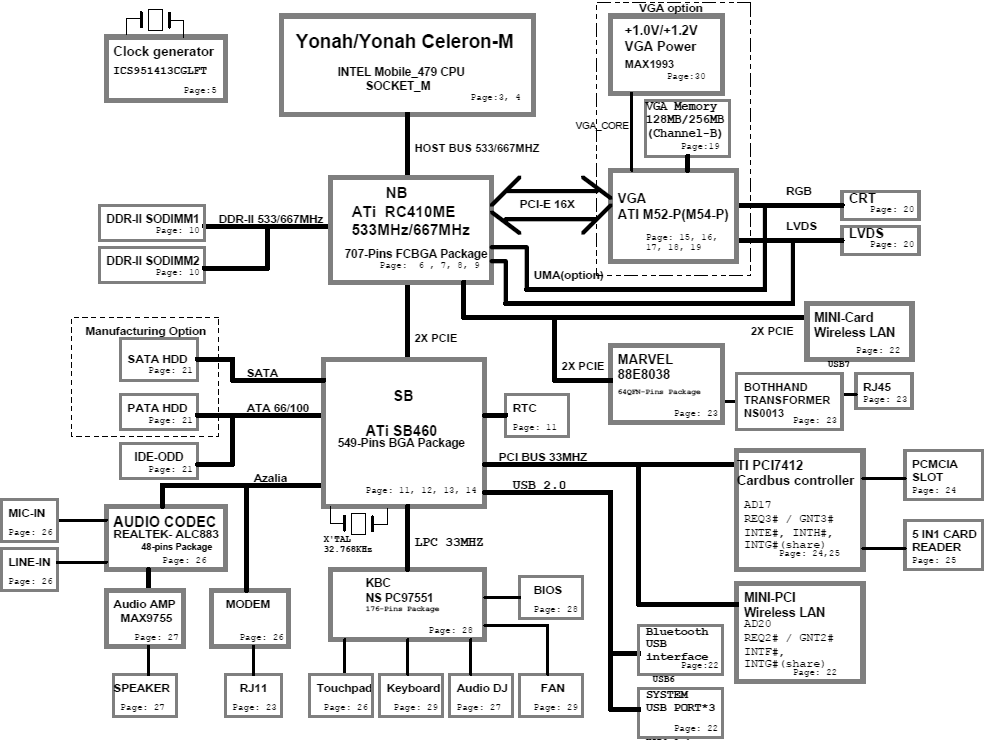

Click on picture to enlarge	Price: US $9.75 Major components CPU :INTEL Mobile Yonah/Yonah Celeron-M North Bridge :ATi RC410ME South Bridge :ATi SB460 VGA :UMA / ATI M52-P(M54-P) Clock Generator :ICS951413CGLFT Thermal Sensor : Audio Codec :REALTEK- ALC883 Audio Amplifier :MAX9755 KBC(Embeded Controller),SIO :NS PC97551 LAN Controller :Marvel 88E8038 CardBUS/1394/Cardreader Contr.:TI PCI7412 <Power System> MAX8736 SC1470 MAX1992 NCP5214 MAX1999 MAX1993 MAX8724 Total Pages : 35 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $9.75

Major components

CPU :INTEL Mobile Yonah/Yonah Celeron-M
North Bridge :ATi RC410ME
South Bridge :ATi SB460
VGA :UMA / ATI M52-P(M54-P)
Clock Generator :ICS951413CGLFT
Thermal Sensor :
Audio Codec :REALTEK- ALC883
Audio Amplifier :MAX9755
KBC(Embeded Controller),SIO :NS PC97551
LAN Controller :Marvel 88E8038
CardBUS/1394/Cardreader Contr.:TI PCI7412

<Power System>

MAX8736
SC1470
MAX1992
NCP5214
MAX1999
MAX1993
MAX8724

Total Pages : 35
File tipe : PDF
Language : English

Updated: 04-01-2010
