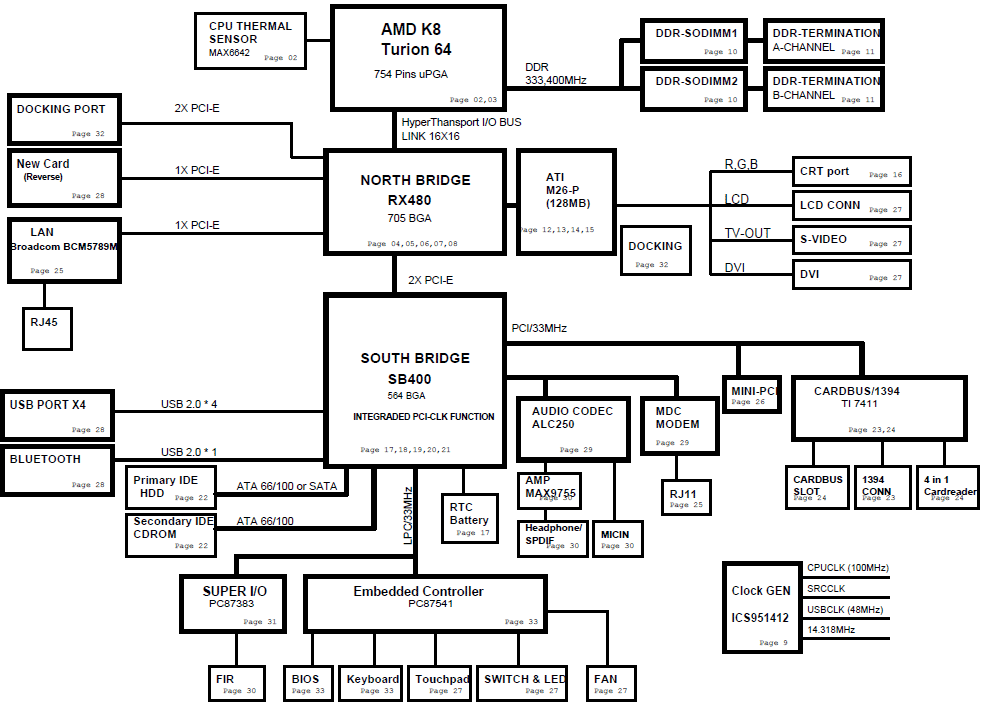

Acer Ferrari 4000, Motherboard schematic diagram Schematic diagram
|
|
Price: US $9.75 CPU : AMD K8 Turion 64 North Bridge : RX480 South Bridge : SB400 VGA : ATI M26-P (128MB) Clock Generator : ICS951412 Audio Codec : Realtec ALC250 Audio Amplifier : MAX9755 KBC(Embeded Controller),SIO : PC87541 , PC87383 LAN Controller : Broadcom BCM5789M PCMCIA controller : TI7411 <Power System> 5V/3V : MAX1999 Vcore : MAX1544 2.5SUS/DDR/+2.5v : MAX1544 +1.8V/1.2V/VGA_CORE: MAX1845 , MAX1993 Total Pages : 32 File tipe : PDF Language : English |
|---|
