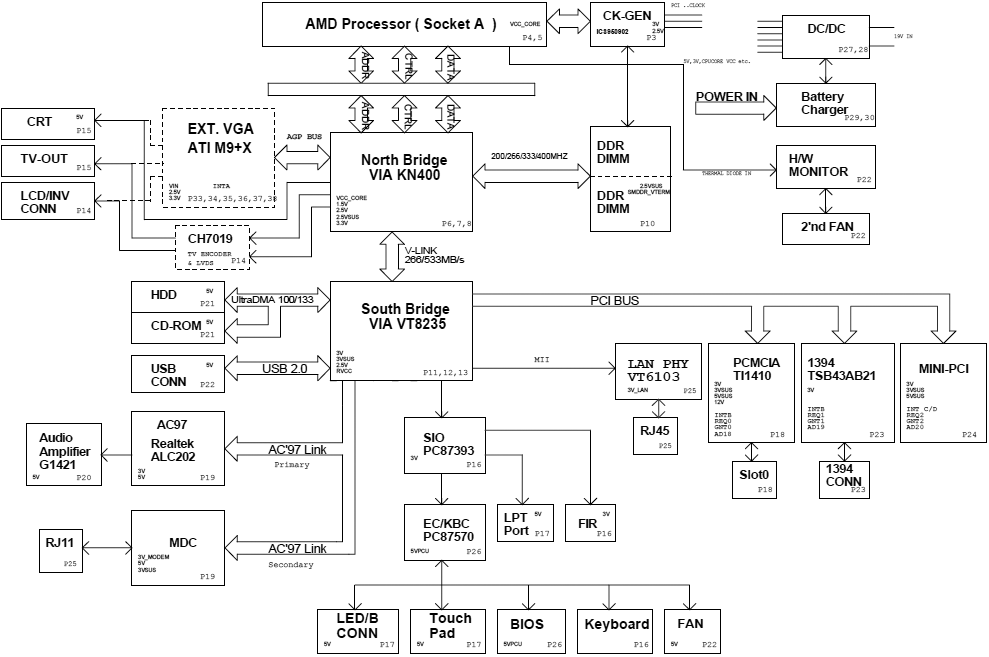

Acer Ferrari 3000, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $9.75 Major components CPU : AMD Processor ( Socket A ) North Bridge : VIA KN400 South Bridge : VIA VT8235 VGA (External) : ATI M9+X Clock Generator : ICS950902 Audio Codec : Realtec ALC202 Audio Amplifier : G1421 KBC(Embeded Controller),SIO : PC87570 , PC87393 LAN Controller : VT6103 PCMCIA controller : TI1410 IEEE 1394 controller : TSB43AB21 <Power System> 5V/3V : MAX1632 Vcore : MAX1939 SYS POWER 2.5V&DDR : MAX1844 Total Pages : 38 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $9.75

Major components

CPU : AMD Processor ( Socket A )
North Bridge : VIA KN400
South Bridge : VIA VT8235
VGA (External) : ATI M9+X
Clock Generator : ICS950902
Audio Codec : Realtec ALC202
Audio Amplifier : G1421
KBC(Embeded Controller),SIO : PC87570 , PC87393
LAN Controller : VT6103
PCMCIA controller : TI1410
IEEE 1394 controller : TSB43AB21

<Power System>

5V/3V : MAX1632
Vcore : MAX1939
SYS POWER 2.5V&DDR : MAX1844

Total Pages : 38
File tipe : PDF
Language : English

Updated: 12-01-2010
