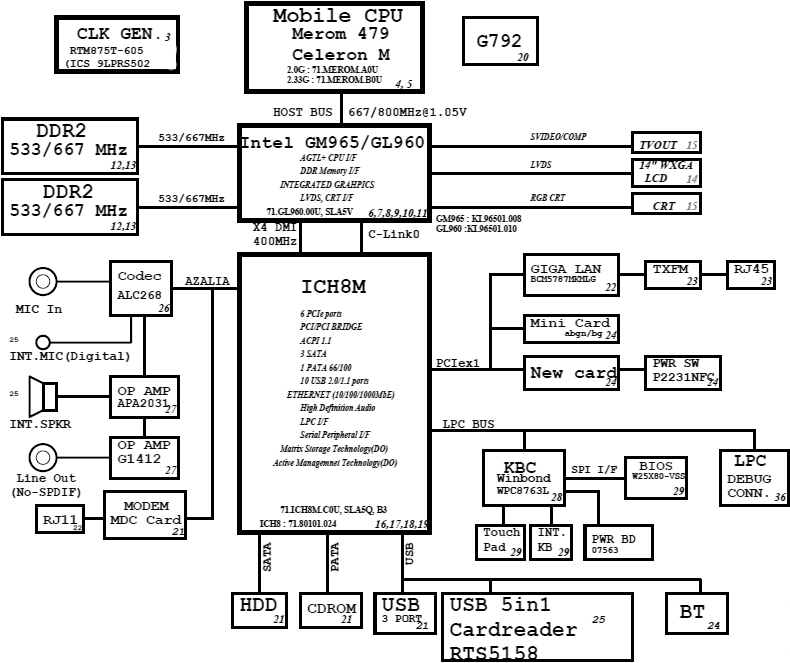

Acer Aspire 2920, Motherboard Schematic diagram

Click on picture to enlarge

Price: US $11.25

Major components

CPU :Intel Merom Celeron M 2.0/2.33Ghz
North Bridge :Intel GM965/GL960
South Bridge :Intel ICH8M
VGA :UMA
Clock Generator :RTM875T-605 (ICS 9LPRS502)
Thermal Sensor :G792
Audio Codec :ALC268
Audio Amplifier :APA2031,G1412
KBC(Embeded Controller),SIO :WPC8763L
LAN Controller :BCM5787MKMLG
CardBUS/1394/Cardreader Contr.:

<Power System>

TPS51120
TPS51124
TPS51100(G2997)
APL5913
G909
APL5915
MAX8731
MAX8770


Total Pages : 39
File type : PDF
Language : English
Updated: 17-02-2010
