Asus X5D-series X5DAB, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $18.75 !!! Power Flow Chart included Major components CPU : AMD S1G2 Thermal Sensor :G780P11U Chipset : AMD RS780M / AMD SB700 Video: ATI M92/96 Clock Generator :ICS/9LPR363 Audio Codec : VIA 1708S Audio Amplifier :G1431F2U KBC(Embeded Controller),SIO : IT8512 LAN Controller :Realtek RTL8112 Card BUS etc...: <Power System> AP48002 MB39A132 AP4835 MAX17480 RJK03552 UMC4N AP48003 RT8205 AP4800+RJK0355 AP4800+AP4800 AP4800 UP7714 UP7711 AP48002 RT8202 AP4800+RJK0355 AP4800*2 RT8202 RJK0355+RJK0355 Total Pages :86 File type : PDF Language : English

Click on picture to enlarge

Price: US $18.75

!!! Power Flow Chart included

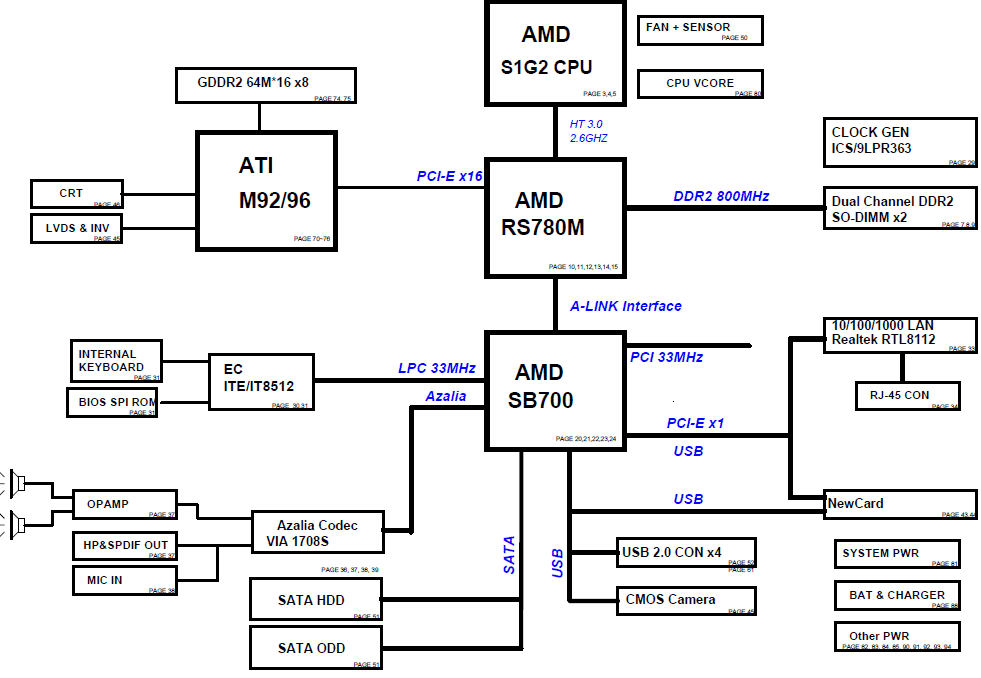

Major components

CPU : AMD S1G2
Thermal Sensor :G780P11U
Chipset : AMD RS780M / AMD SB700
Video: ATI M92/96
Clock Generator :ICS/9LPR363
Audio Codec : VIA 1708S
Audio Amplifier :G1431F2U
KBC(Embeded Controller),SIO : IT8512
LAN Controller :Realtek RTL8112
Card BUS etc...:

<Power System>

AP4800*2
MB39A132
AP4835
MAX17480
RJK0355*2
UMC4N
AP4800*3
RT8205
AP4800+RJK0355
AP4800+AP4800
AP4800
UP7714
UP7711
AP4800*2
RT8202
AP4800+RJK0355
AP4800*2
RT8202
RJK0355+RJK0355

Total Pages :86
File type : PDF
Language : English

Updated: 05-03-2010
