Asus K40-series K40AB, Motherboard Schematic diagram

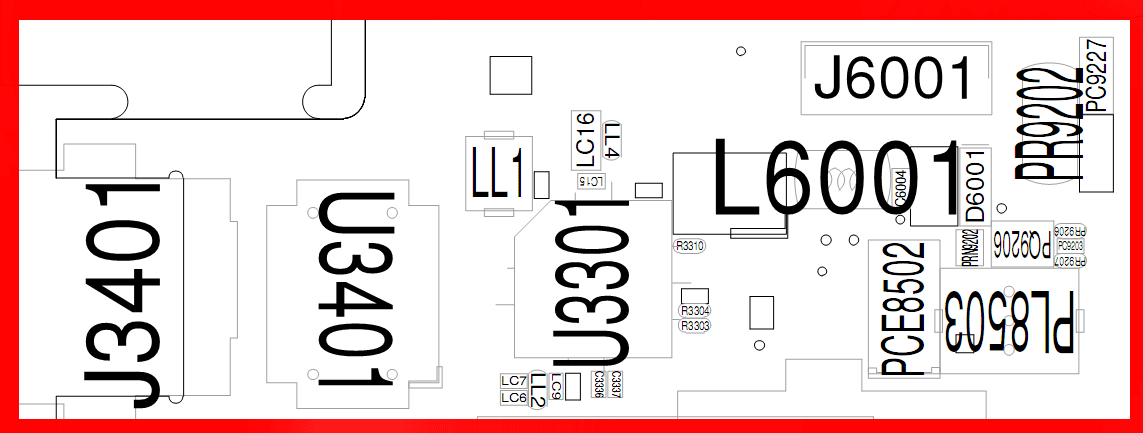

Click on picture to enlarge |

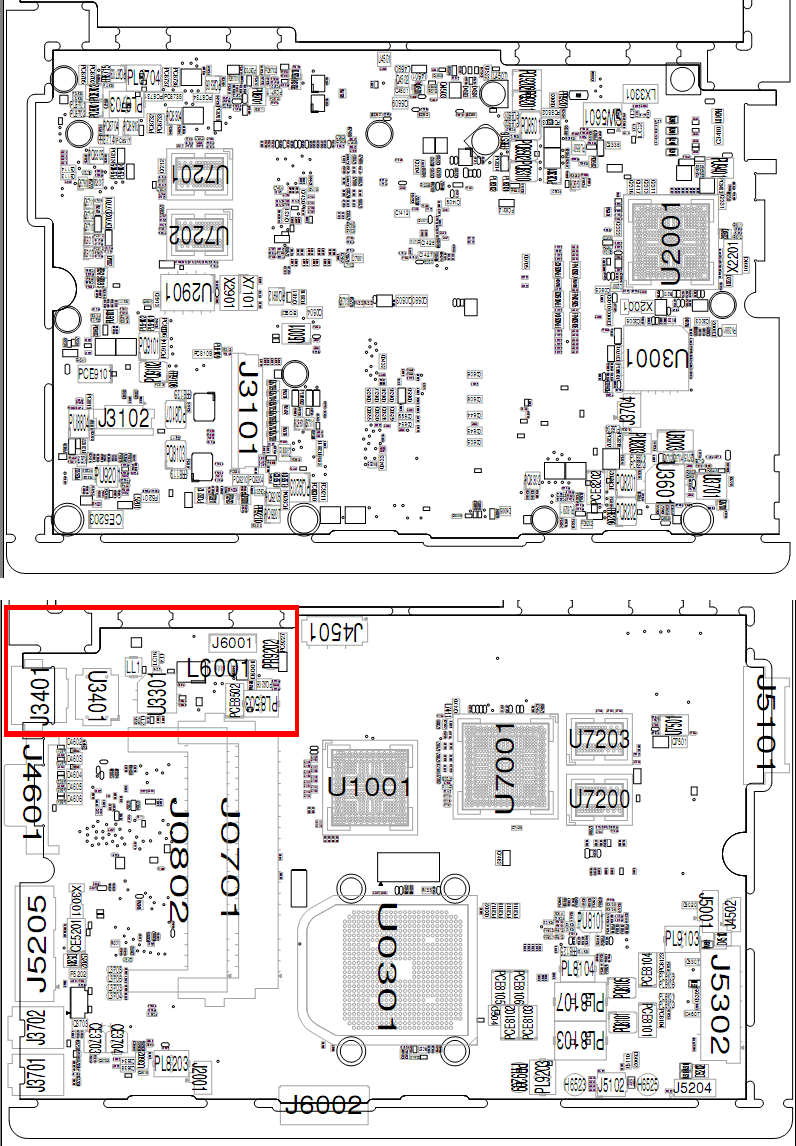

Also Included *Power Flow Chart ** Motherboard layout (top and bottom). You will be able easily find any component on the motherboard . Major components CPU : AMD S1G2 Thermal Sensor :G780P11U Chipset : AMD RS780M / AMD SB700 Video: ATI M92/96 Clock Generator :ICS/9LPR363 Audio Codec : VIA 1708S Audio Amplifier :G1431F2U KBC(Embeded Controller),SIO : IT8512 LAN Controller :Realtek RTL8112 Card BUS etc...: <Power System> AP4800*2 MB39A132 AP4835 MAX17480 RJK0355*2 UMC4N AP4800*3 RT8205 AP4800+RJK0355 AP4800+AP4800 AP4800 UP7714 UP7711 AP4800*2 RT8202 AP4800+RJK0355 AP4800*2 RT8202 RJK0355+RJK0355 Total Pages :86 File type : PDF Language : English |
---|
