Asus Z37-series Z37S, Motherboard Schematic diagram
Click on picture to enlarge |

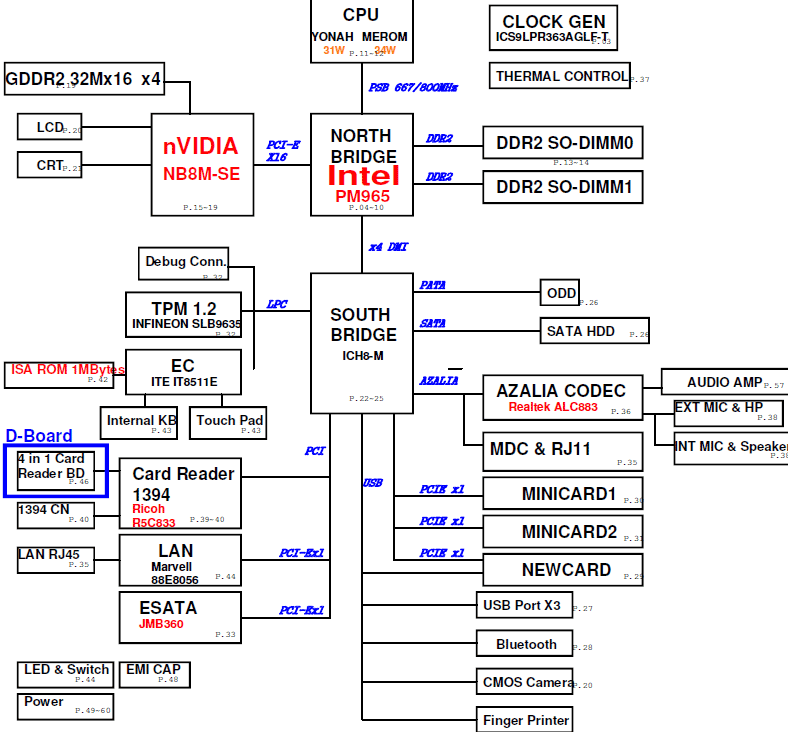

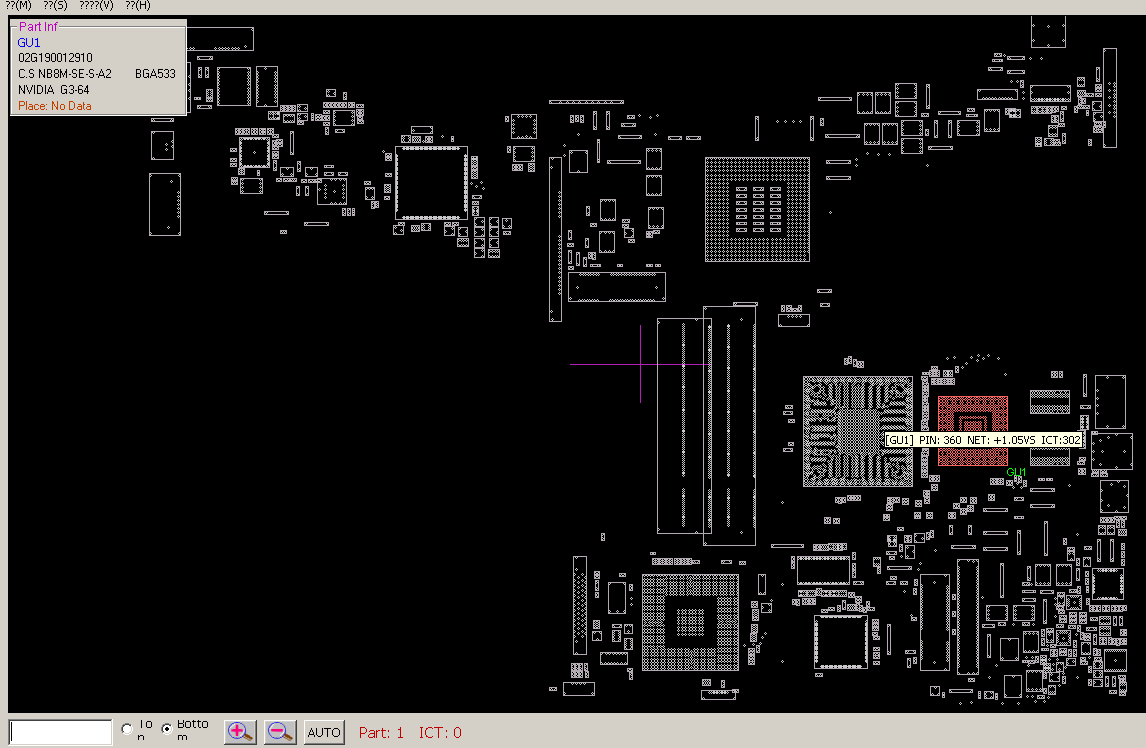

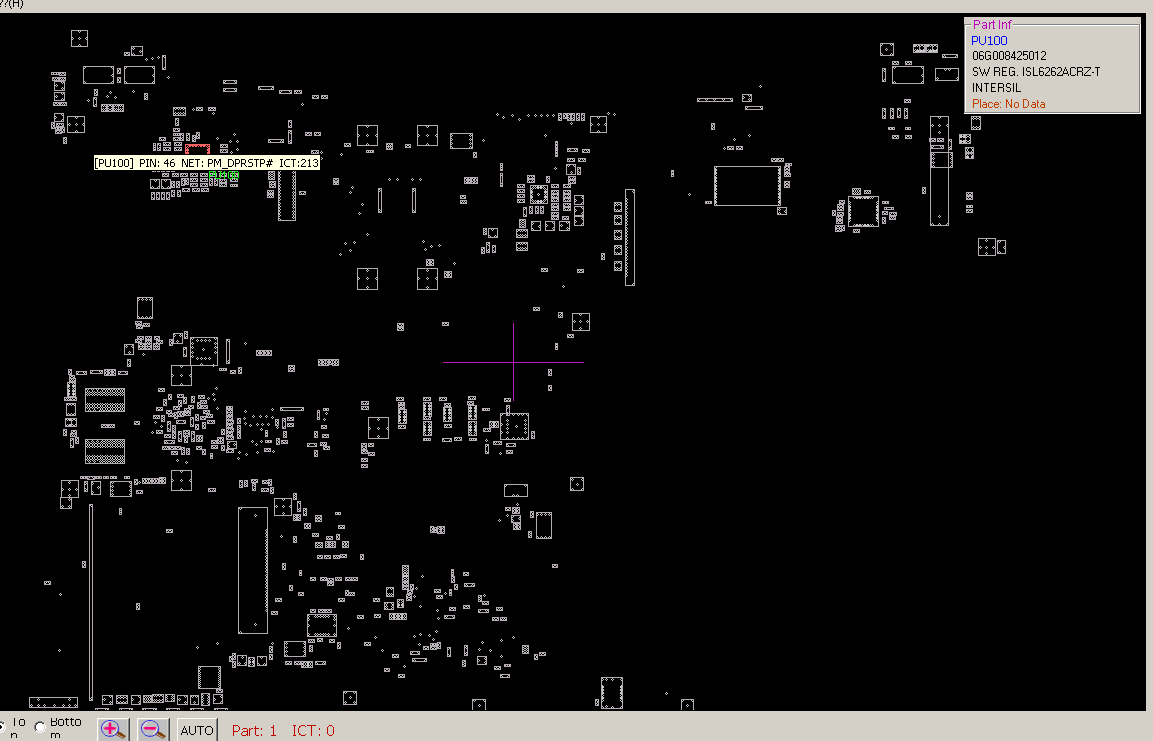

!!! Board view included. Locate any component, any signal or a component pinout in few seconds! !!! Power Flow Chart and Power ON Sequence diagram are included Major components CPU :Intel Yonah / Merom Thermal Sensor :G781 + G781 Chipset : Intel PM965 / Intel ICH8-M Video: nVIDIA NB8M-SE Clock Generator :ICS9LPR363AGLF-T Audio Codec : Realtek ALC883 Audio Amplifier :TPA6017A2PWP + LMV358IDR KBC(Embeded Controller),SIO :ITE IT8511E LAN Controller :Marvell 88E8056 Card BUS etc...:R5C833,JMB360 <Power System> MAX8725 TCP8107 SC411MLTRT TL431+MOS UMC4N UMC4N AP4800AGM AP60T03GH CM8562PGIS AP4800AGM AP60T03GH SC411MLTRT AP9452GG CM8562PGIS CM8562PGIS TL431+AP9452GG AP9452GG ISL6262ACRZ Total Pages :67 File type : PDF Language : English |
---|
