Asus Z37-series Z37A, Motherboard Schematic diagram

Click on picture to enlarge	Price: US $15.00 !!! Power Flow Chart and Power ON Sequence diagram are included Major components CPU :Intel Penryn Dual Core Thermal Sensor :MAX6657YMS+ Chipset : Intel GM45 / Intel ICH9-M Video: UMA Clock Generator :ICS9LPR364AGLF-T Audio Codec : Realtek ALC663 Audio Amplifier :TI TPA6017A2 KBC(Embeded Controller),SIO :ENE KB3925 LAN Controller :RTL8111C-GR Card BUS etc...:R5C833 <Power System> MAX8725 TCP8107 SC411MLTRT SC411MLTRT TL431+MOS UMC4N UMC4N AO4468 AO4468 CM8562PGIS AO4468 AO4468 SC411MLTRT ISL6262ACRZ AP9452GG CM8562PGIS APL5913 AP9452GG Total Pages :70 File type : PDF Language : English

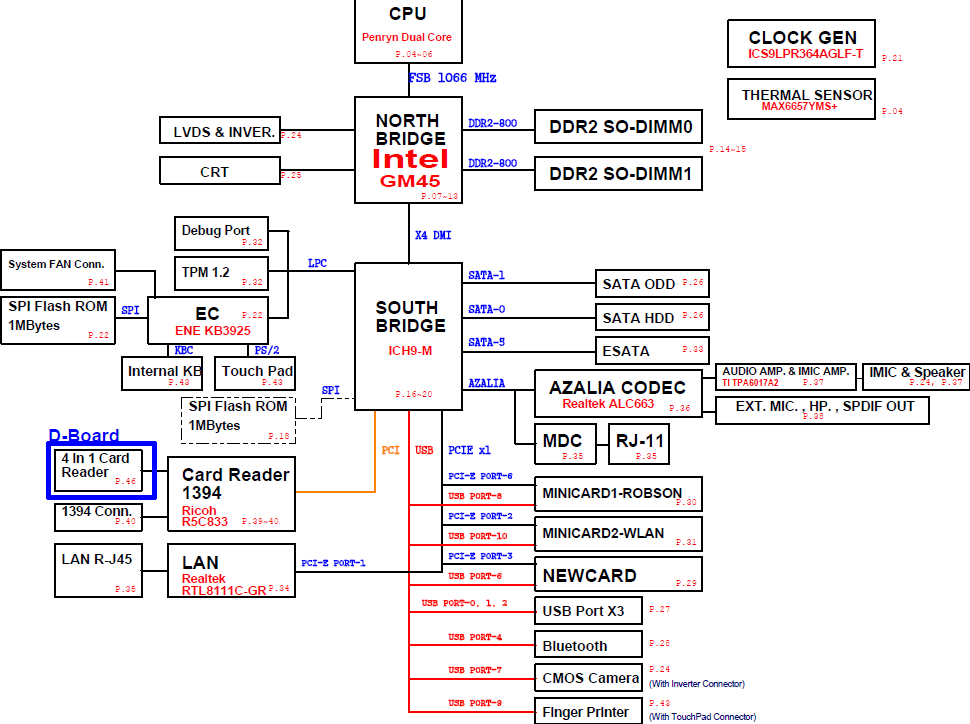

Click on picture to enlarge

Price: US $15.00

!!! Power Flow Chart and Power ON Sequence diagram are included

Major components

CPU :Intel Penryn Dual Core
Thermal Sensor :MAX6657YMS+
Chipset : Intel GM45 / Intel ICH9-M
Video: UMA
Clock Generator :ICS9LPR364AGLF-T
Audio Codec : Realtek ALC663
Audio Amplifier :TI TPA6017A2
KBC(Embeded Controller),SIO :ENE KB3925
LAN Controller :RTL8111C-GR
Card BUS etc...:R5C833

<Power System>

MAX8725
TCP8107
SC411MLTRT
SC411MLTRT
TL431+MOS
UMC4N
UMC4N
AO4468
AO4468
CM8562PGIS
AO4468
AO4468
SC411MLTRT
ISL6262ACRZ
AP9452GG
CM8562PGIS
APL5913
AP9452GG

Total Pages :70
File type : PDF
Language : English

Updated: 04-03-2010
