Asus F3-series F3E, Motherboard Schematic diagram

Click on picture to enlarge

Price: US $15.00

Included:

*Power Sequence diagram included

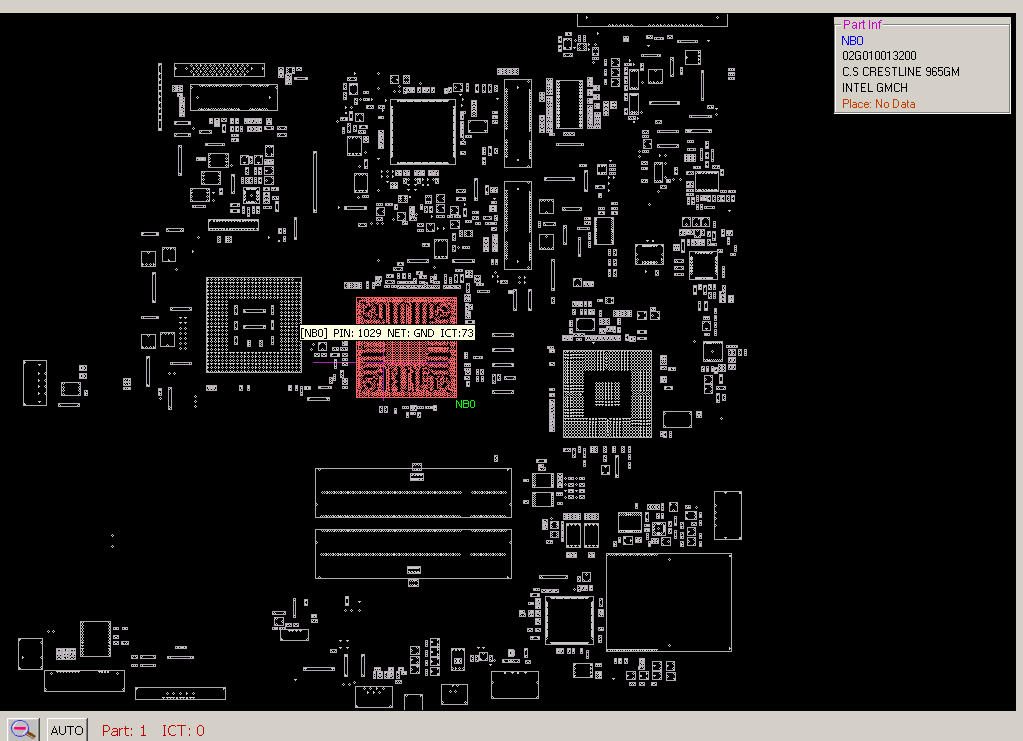

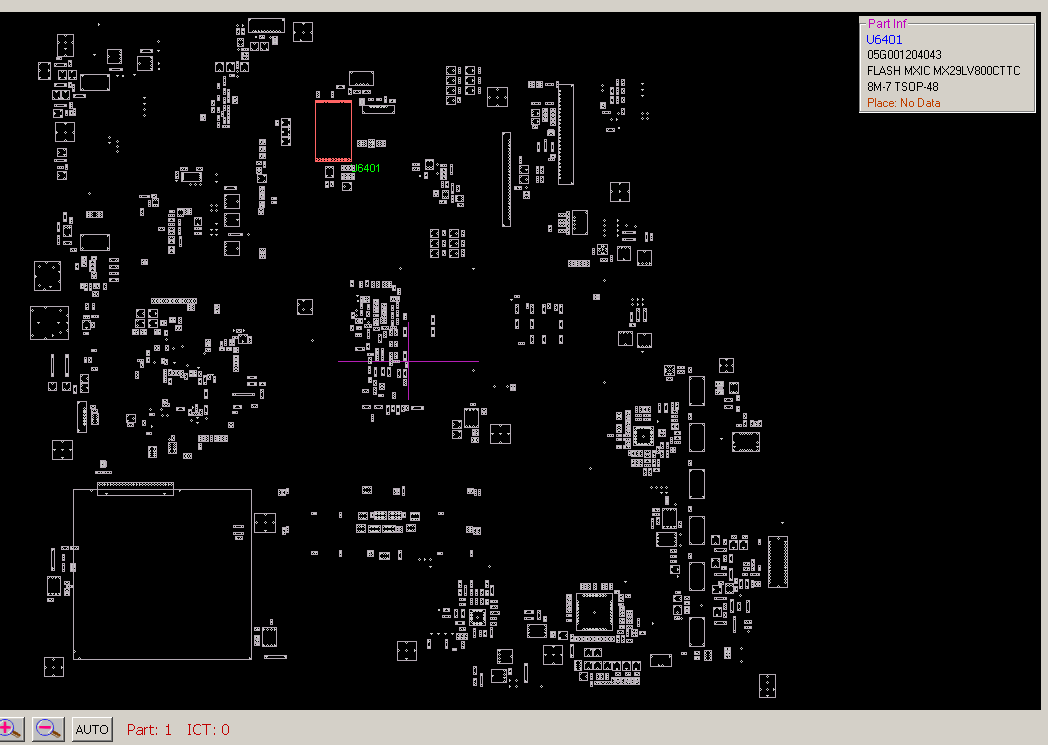

**"Board view" file + software (viewer). Using this tool you will be able
to find any component, pin or signal on your motherboard in few seconds!

"Board view"? How does it work? Download and try a free sample! No installation needed
514,46 KB

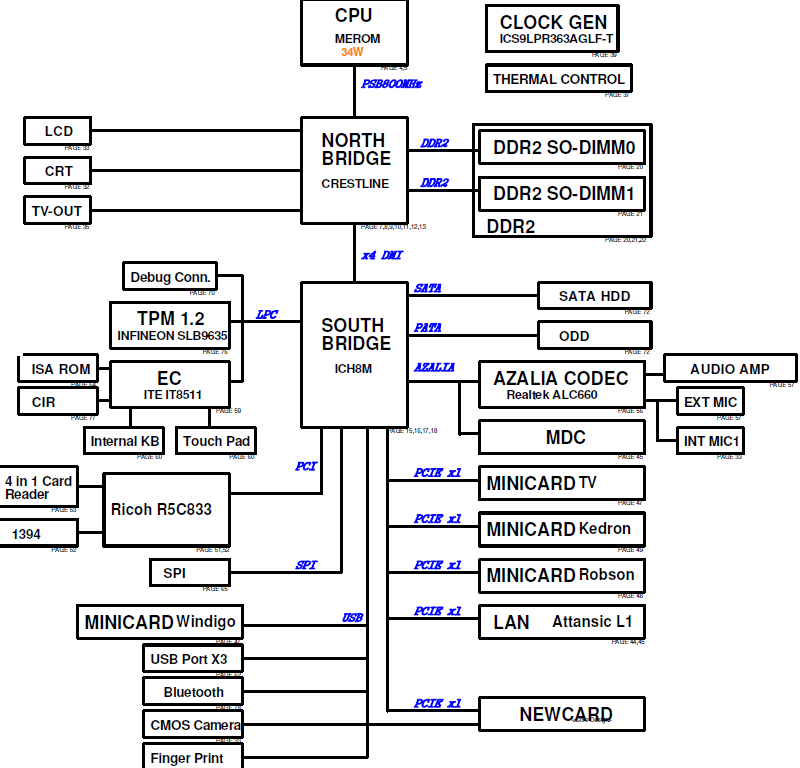

Major components

CPU :Intel MEROM
Thermal Sensor :MAX6657MSA + G781
Chipset :Intel CRESTLINE / ICH8M
Clock Generator :ICS9LPR363AGLF-T
Audio Codec :Realtek ALC660
Audio Amplifier :TPA6017A2PWP
KBC(Embeded Controller),SIO :ITE IT8511
LAN Controller :Attansic L1
Card BUS etc...:R5C833

<Power System>

MAX8725ETI
LM358AD
MAX8632ETI
MAX8743EEI
TPS51020
SI9183DT
MIC5235YM5
ISL6262ACRZ-T

Total Pages :89
File type : PDF
Language : English
Updated: 13-06-2010
Copyright © 2008-2022 www.laptop-schematics.com
