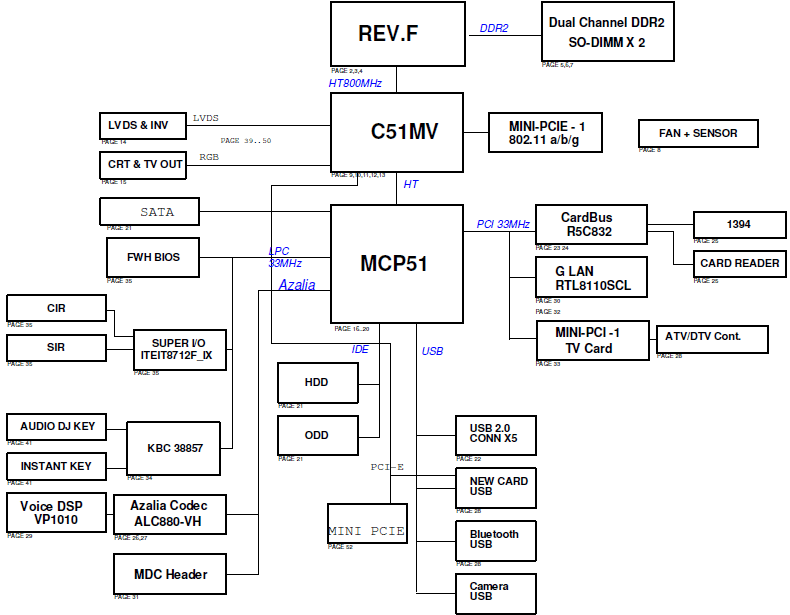

Asus Z83-series Z83M, Motherboard Schematic diagram
Click on picture to enlarge |
*Board view included. Locate any component, any signal or a component pinout in few seconds! !!! Power Flow Chart included Major components CPU : AMD S1 Thermal Sensor : ADT7475ARQZ Chipset : nVidia C51MV / MCP51 Video: UMA Clock Generator : Audio Codec :ALC880-VH Audio Amplifier :G1420F31UF x2 KBC(Embeded Controller),SIO :KBC 38857/ SIO ITEIT8712F LAN Controller :RTL8110SCL Card BUS etc...:R5C832 <Power System> MIC5235 F02JK2E LM4040BIM3 MIC5235YM5 SI9183DT TPS51020 MIC5235YM5 ISL6227 CM8562GISTR ISL6227 PMN45EN UMC4N FDW2501NZ UMC4N FDW2501NZ CM8562GISTR MAX8760 MAX1844EEP Total Pages :73 File type : PDF Language : English |
---|
