Asus Z84-series Z84FM, Motherboard Schematic diagram
Click on picture to enlarge |

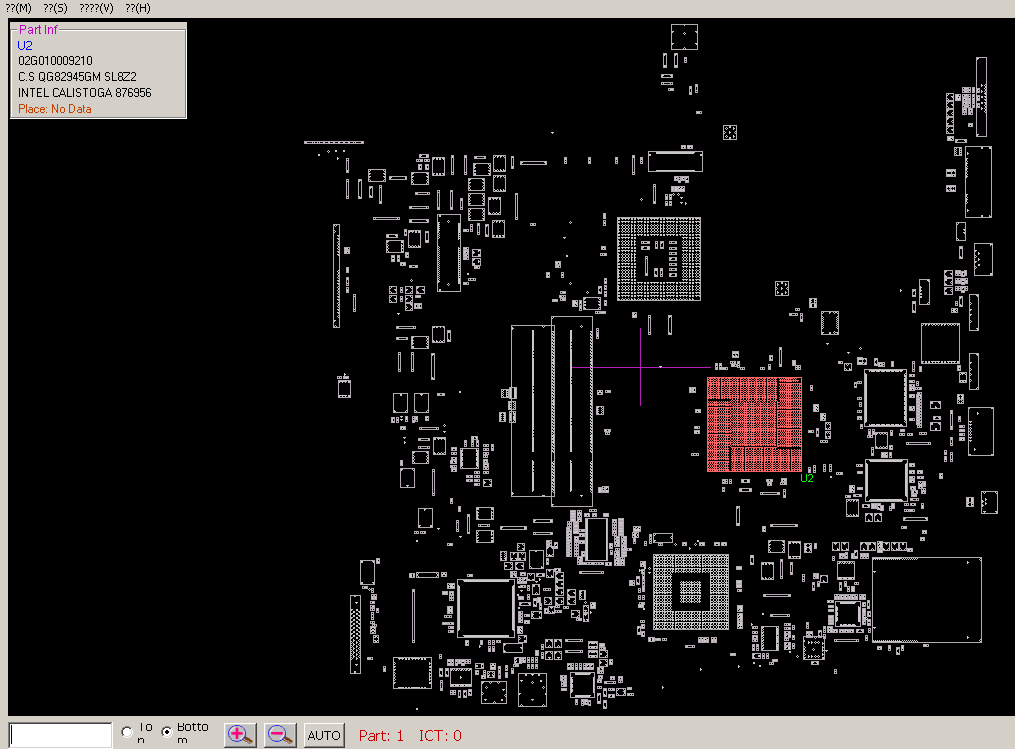

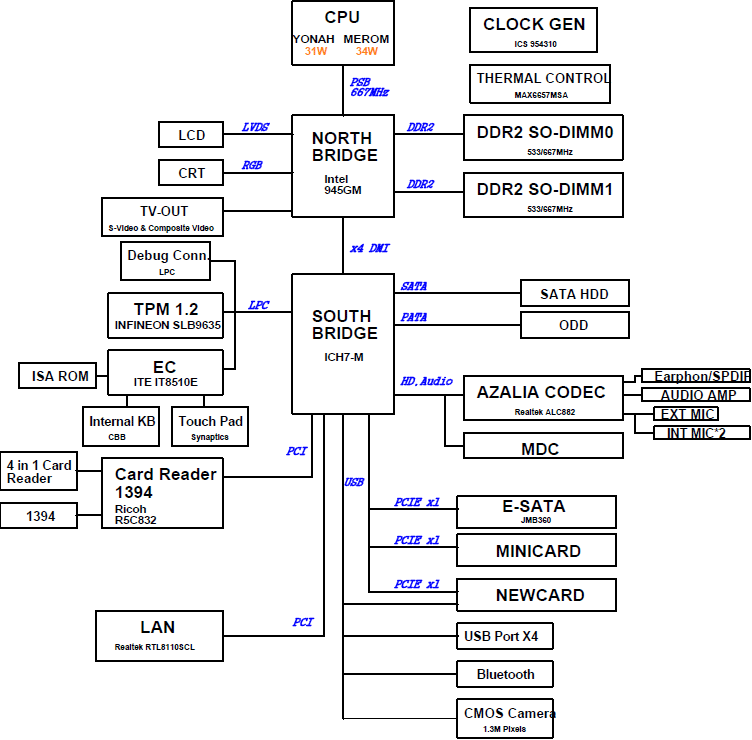

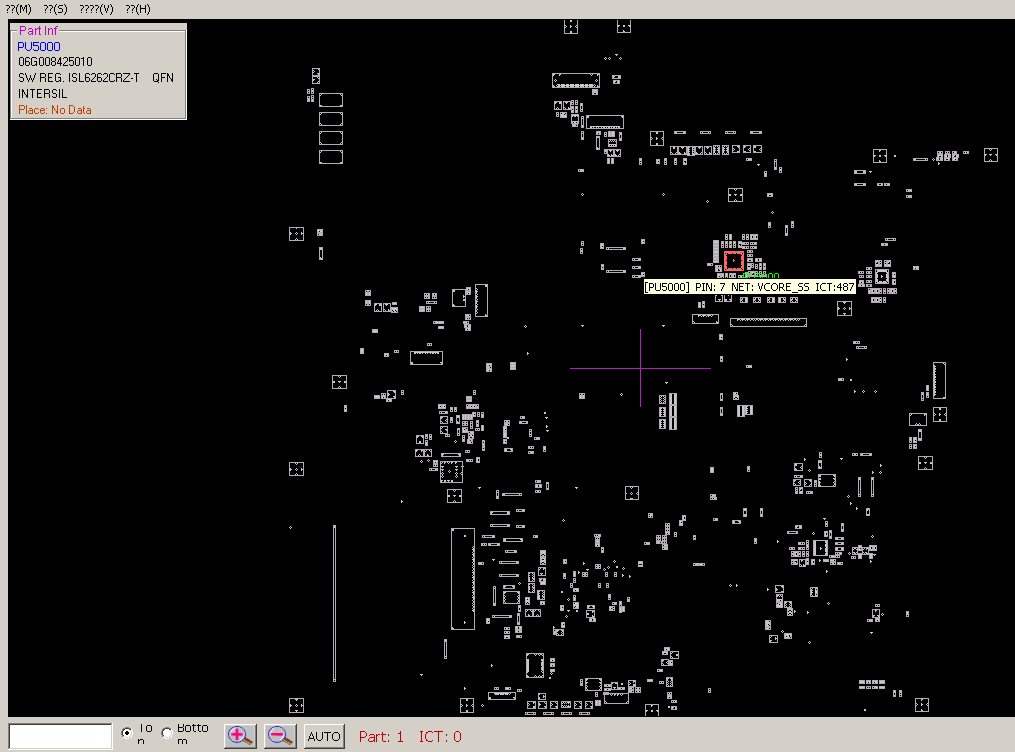

*Board view included. Locate any component, any signal or a component pinout in few seconds! !!! Power Flow Chart included !!! Major components CPU :Intel Centrino Duo (YONAH / MEROM) Thermal Sensor :MAX6657MSA Chipset :Intel 945PM / ICH7-M Video: MXM CARD Clock Generator :ICS 954310 Audio Codec :Realtek ALC882H Audio Amplifier :TPA0312PWPR KBC(Embeded Controller),SIO :ITE IT8510E LAN Controller :Marvell 88E8056 Card BUS etc...:VR5C832 <Power System> L78L05ACUTR BAT54CW MAX8725EIT TCP8107 H431+78L05 UMC4N UMC4N H431BN+MW882 L78L05ACUTR TPS51020 AP60T03GH AP60T03GH AP60T03GH AP60T03GH CM8562P CM8562P ISL6227CAZ NPC5214 ISL6262CRZ Total Pages :66 File type : PDF Language : English |
---|
