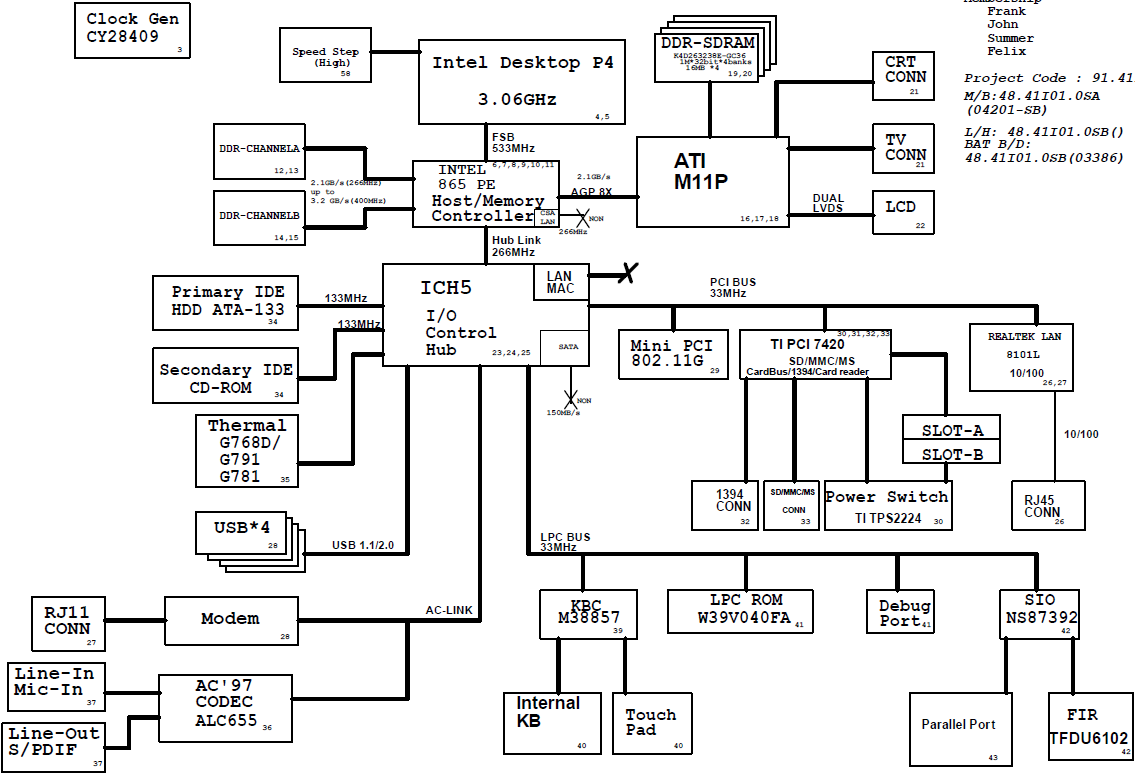

Acer Aspire 1610, Motherboard Schematic diagram

Click on picture to enlarge	Price: US $9.75 Major components CPU : Intel Pentium4 3.06Ghz North Bridge : Intel 865PE South Bridge : ICH5 VGA : ATI M11P Clock Generator : CY28409 Thermal Sensor : G768D/G791/G781 Audio Codec : ALC655 Audio Amplifier : KBC(Embeded Controller),SIO : M38857,NS87392 LAN Controller : REALTEK 8101L CardBUS/1394/Cardreader Contr.: TI PCI7420 <Power System> MAX1999 FDS9412 TPS5130 APL5308 MAX1645 APL5331 ISL6247/ISL6207 Total Pages : 58 File type : PDF Language : English

Click on picture to enlarge

Price: US $9.75

Major components

CPU : Intel Pentium4 3.06Ghz
North Bridge : Intel 865PE
South Bridge : ICH5
VGA : ATI M11P
Clock Generator : CY28409
Thermal Sensor : G768D/G791/G781
Audio Codec : ALC655
Audio Amplifier :
KBC(Embeded Controller),SIO : M38857,NS87392
LAN Controller : REALTEK 8101L
CardBUS/1394/Cardreader Contr.: TI PCI7420

<Power System>

MAX1999
FDS9412
TPS5130
APL5308
MAX1645
APL5331
ISL6247/ISL6207

Total Pages : 58
File type : PDF
Language : English

Updated: 17-02-2010
