Asus A8-series A8J, Motherboard Schematic diagram

Click on picture to enlarge

Price: US $15.00

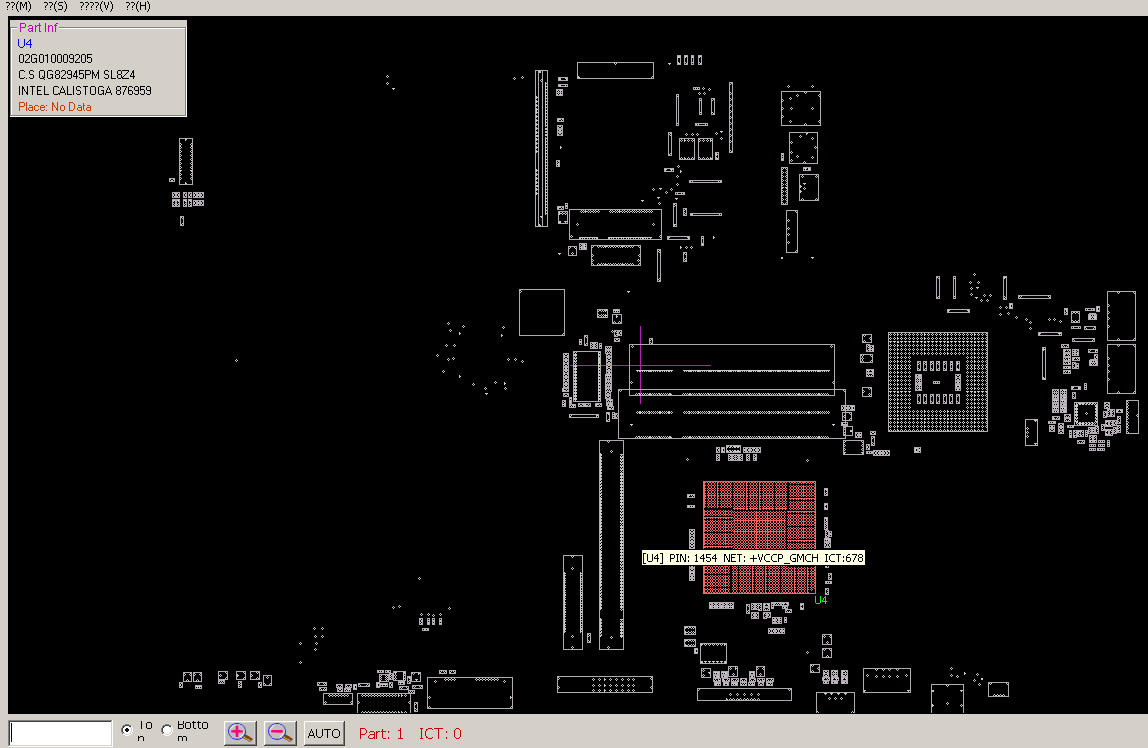

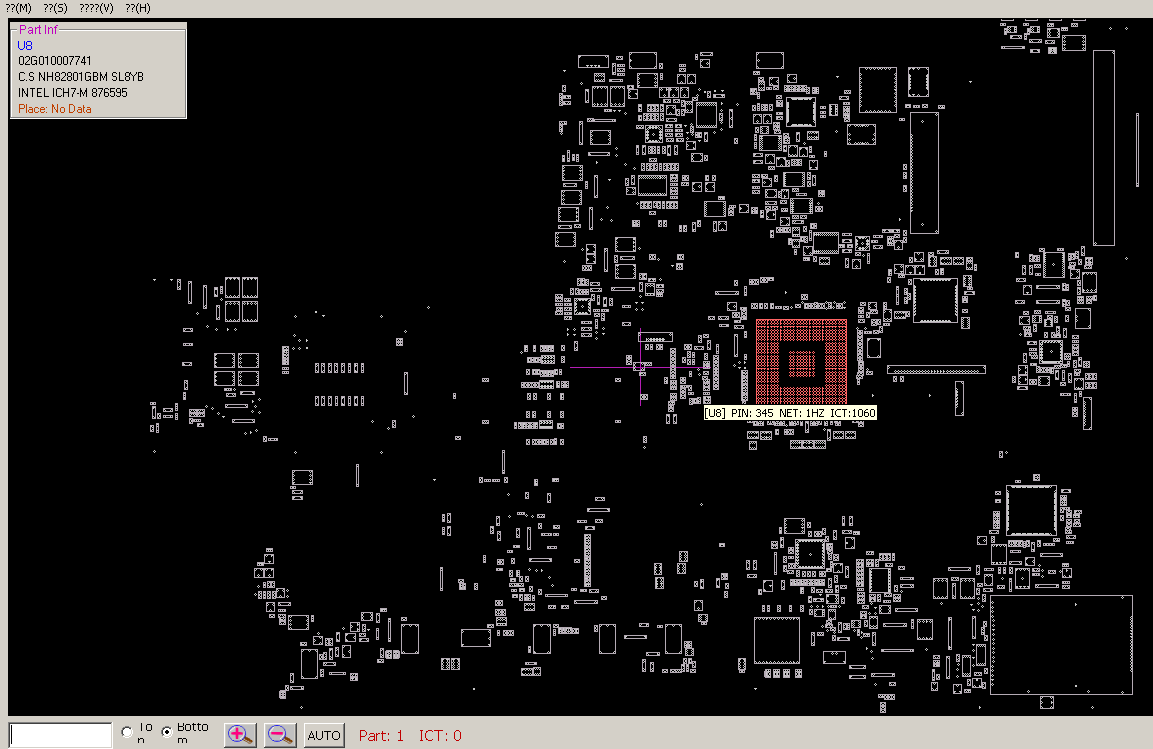

!!! Board view included. Locate any component and get the comprehensive
information about it in few seconds !!!

!!! Power Flow Chart included

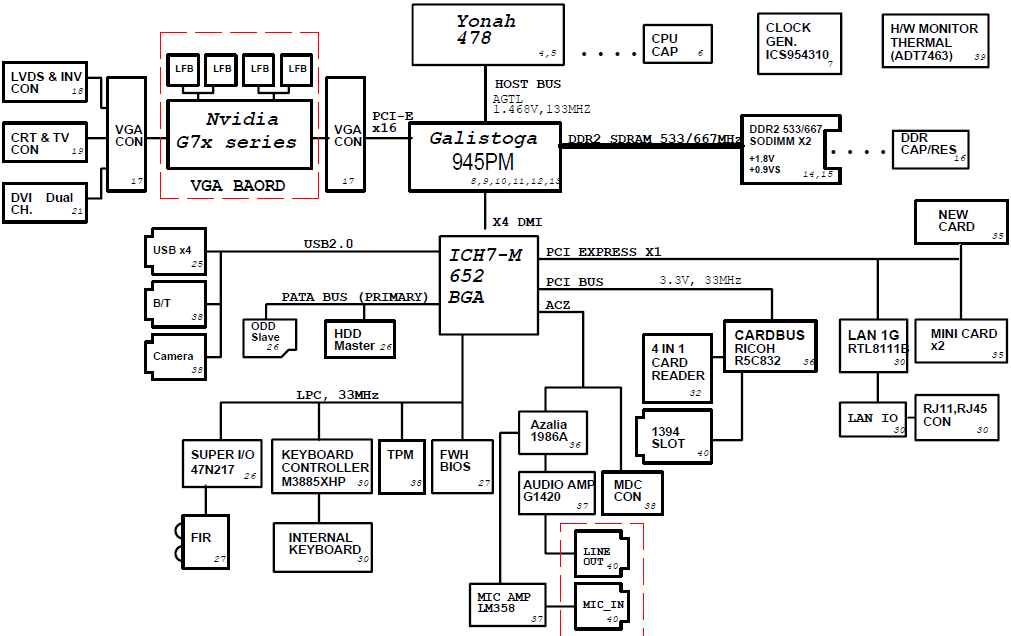

Major components

CPU : Intel Yonah
Thermal Sensor : ADT7463
Chipset : Intel CRESTLINE 945PM / ICH7-M
Video: Nvidia G7x series VGA BAORD
Clock Generator : ICS954310
Audio Codec :1986A
Audio Amplifier :G1420
KBC(Embeded Controller),SIO :M3885XHP , 47N217
LAN Controller :RTL8111B
Card BUS etc...:R5C832

<Power System>

L78L05ACUTR
F02JK2E
LM4040BIM
MAX8724
MAX1837
MIC5235BM
UMC4N
UMC4N
MIC5235BM
MIC5235BM
TPS51020
PMN451N
PMN45EN
CM8562
FDW2501NZ
FDW2501NZ
ISL6227CAZ
ISL6227CAZ
PMN45EN
ISL6262CRZ

Total Pages :58
File type : PDF
Language : English
Updated: 02-03-2010
