Acer Aspire 1600, Motherboard Schematic diagram

Click on picture to enlarge	Price: US $9.75 Major components CPU :Intel Pentium4 Northwood 2.2~3.06GHz North Bridge :SiS645DX South Bridge :SiS962 VGA :ATI M9-P Clock Generator :ICS:ICS952004AG (ICS93732) Thermal Sensor : Audio Codec :Sigmatel STAC9766 Audio Amplifier : KBC(Embeded Controller),SIO :M38857,NS87392 LAN Controller :RTL8100B CardBUS/1394/Cardreader Contr.:Agere FW802A,TI1520 <Power System> MAX1631 PIC12C509 / MAX1645 MAX1715 / FDS9412 / APL1085 / G913C /S2N3906 MAX1715 / CM8501 / FDS9412 /2SB1184F5 / FDC653N ISL6301/ISL6207 Total Pages : 47 File type : PDF Language : English

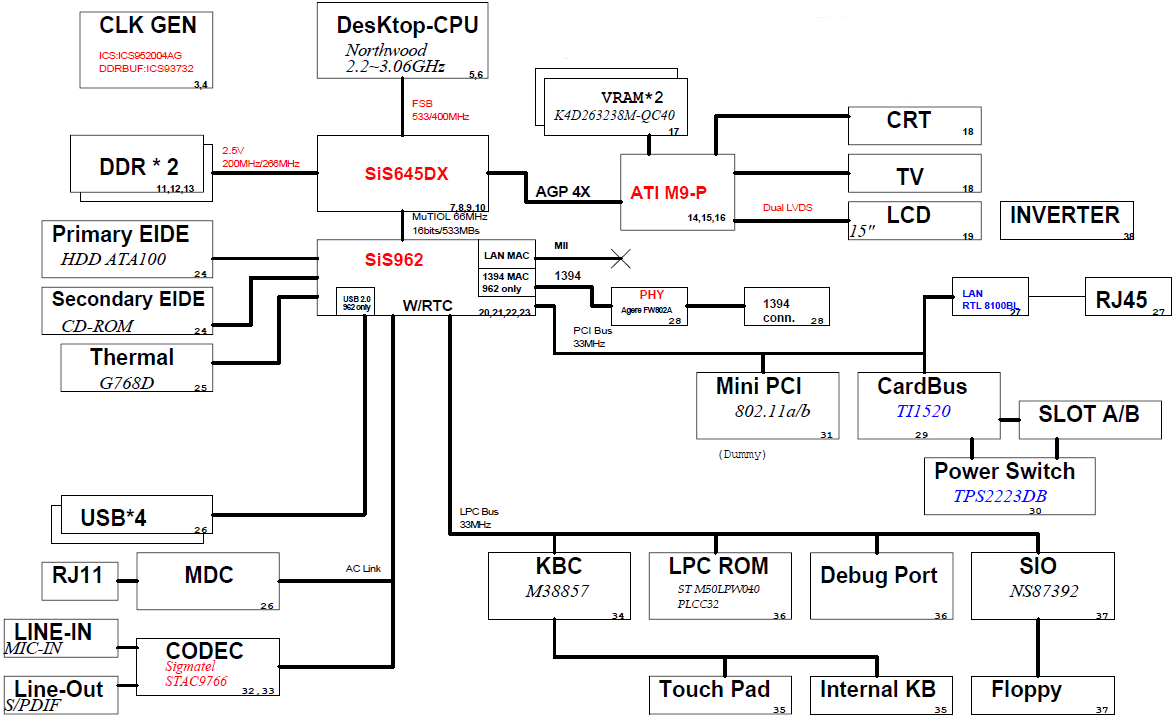

Click on picture to enlarge

Price: US $9.75

Major components

CPU :Intel Pentium4 Northwood 2.2~3.06GHz
North Bridge :SiS645DX
South Bridge :SiS962
VGA :ATI M9-P
Clock Generator :ICS:ICS952004AG (ICS93732)
Thermal Sensor :
Audio Codec :Sigmatel STAC9766
Audio Amplifier :
KBC(Embeded Controller),SIO :M38857,NS87392
LAN Controller :RTL8100B
CardBUS/1394/Cardreader Contr.:Agere FW802A,TI1520

<Power System>

MAX1631
PIC12C509 / MAX1645
MAX1715 / FDS9412 / APL1085 / G913C /S2N3906
MAX1715 / CM8501 / FDS9412 /2SB1184F5 / FDC653N
ISL6301/ISL6207

Total Pages : 47
File type : PDF
Language : English

Updated: 17-02-2010
