Asus A6000-series A6Rp, Motherboard Schematic diagram

Click on picture to enlarge	Price: US $15.00 !!! Board view included. Locate any component and get the comprehensive information about it in few seconds !!! !!! Power Block diagram and Power On Sequence included !!! Major components CPU :Intel Yonah Thermal Sensor :MAX6657 Chipset :RC410MD / SB450 Video: UMA Clock Generator :ICS951417 Audio Codec :ALC660-GR Audio Amplifier :TPA0212PWPRG4 KBC(Embeded Controller),SIO :ITE8510E / LPC4N217 LAN Controller :RTL8100CL Card BUS etc. .... :R5C841 <Power System> L78L05 F02JK2E LM4040BIM SI9183DT TPS51020 L78L12ACUTR UMC4N PMN45EN ISL6227 UMC4N PMN45EN ISL6227 CM8562 LM358ADR SI4800BDY MAX1907 Total Pages :50 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

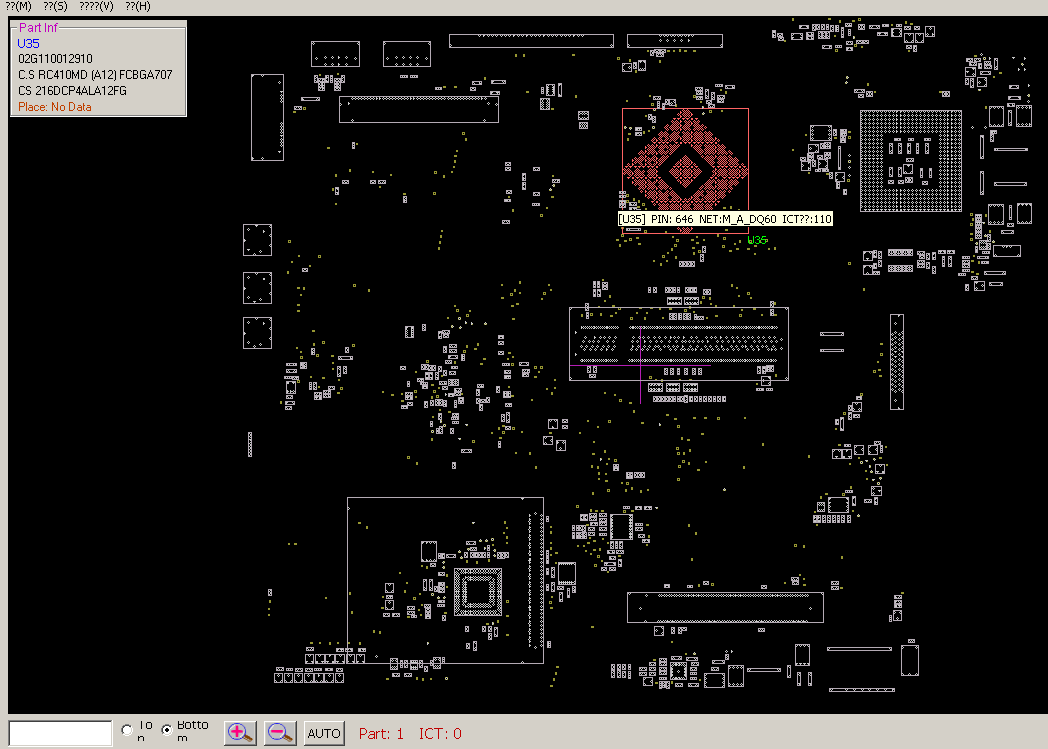

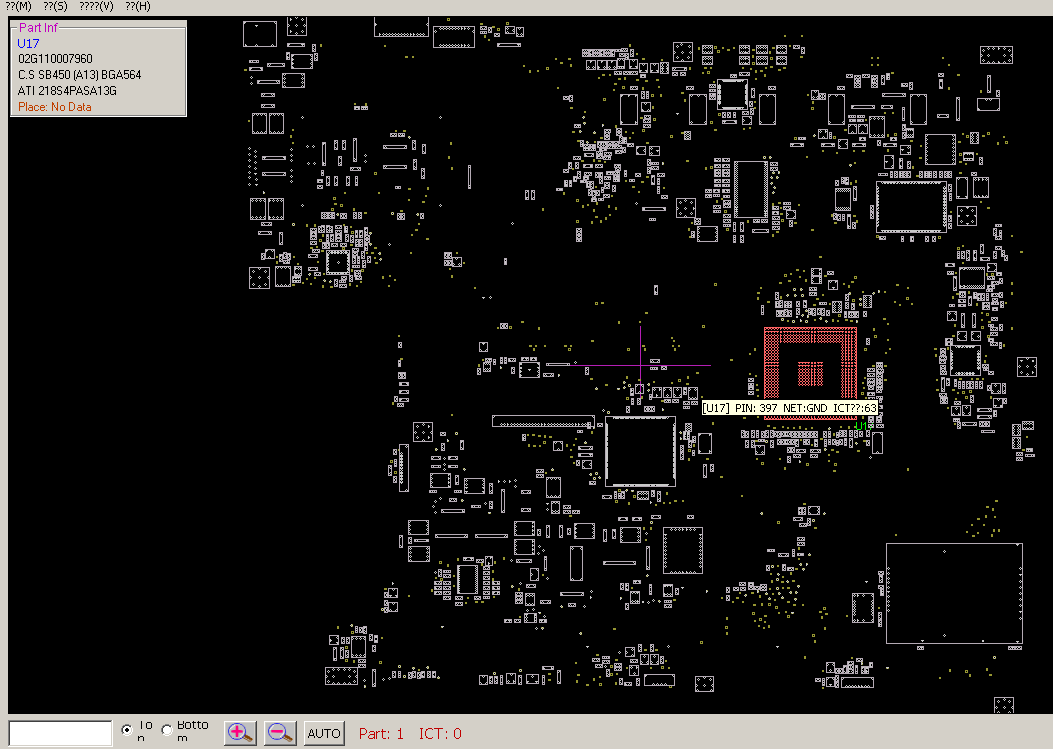

!!! Board view included. Locate any component and get the comprehensive
information about it in few seconds !!!

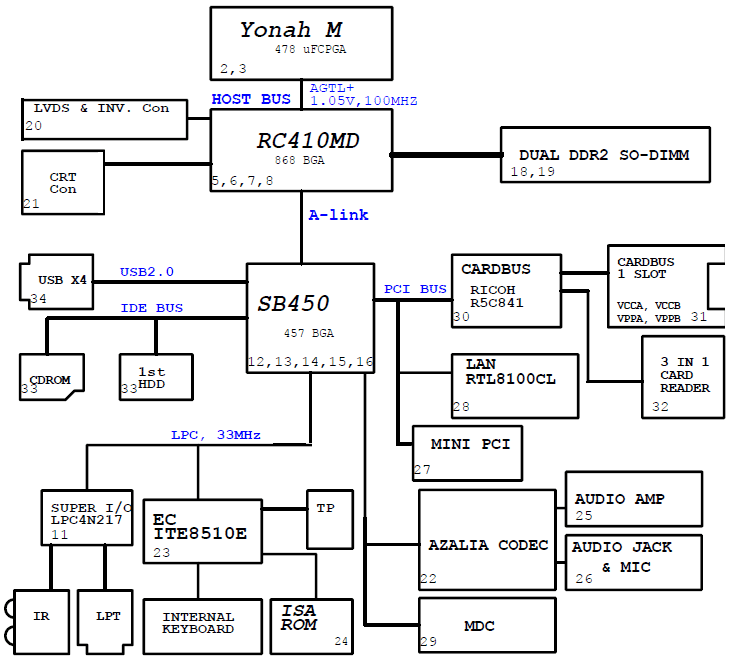

!!! Power Block diagram and Power On Sequence included !!!

Major components

CPU :Intel Yonah
Thermal Sensor :MAX6657
Chipset :RC410MD / SB450
Video: UMA
Clock Generator :ICS951417
Audio Codec :ALC660-GR
Audio Amplifier :TPA0212PWPRG4
KBC(Embeded Controller),SIO :ITE8510E / LPC4N217
LAN Controller :RTL8100CL
Card BUS etc. .... :R5C841

<Power System>

L78L05
F02JK2E
LM4040BIM
SI9183DT
TPS51020
L78L12ACUTR
UMC4N
PMN45EN
ISL6227
UMC4N
PMN45EN
ISL6227
CM8562
LM358ADR
SI4800BDY
MAX1907

Total Pages :50
File type : PDF
Language : English

Updated: 01-03-2010
