Acer Aspire 1510, Motherboard Schematic diagram

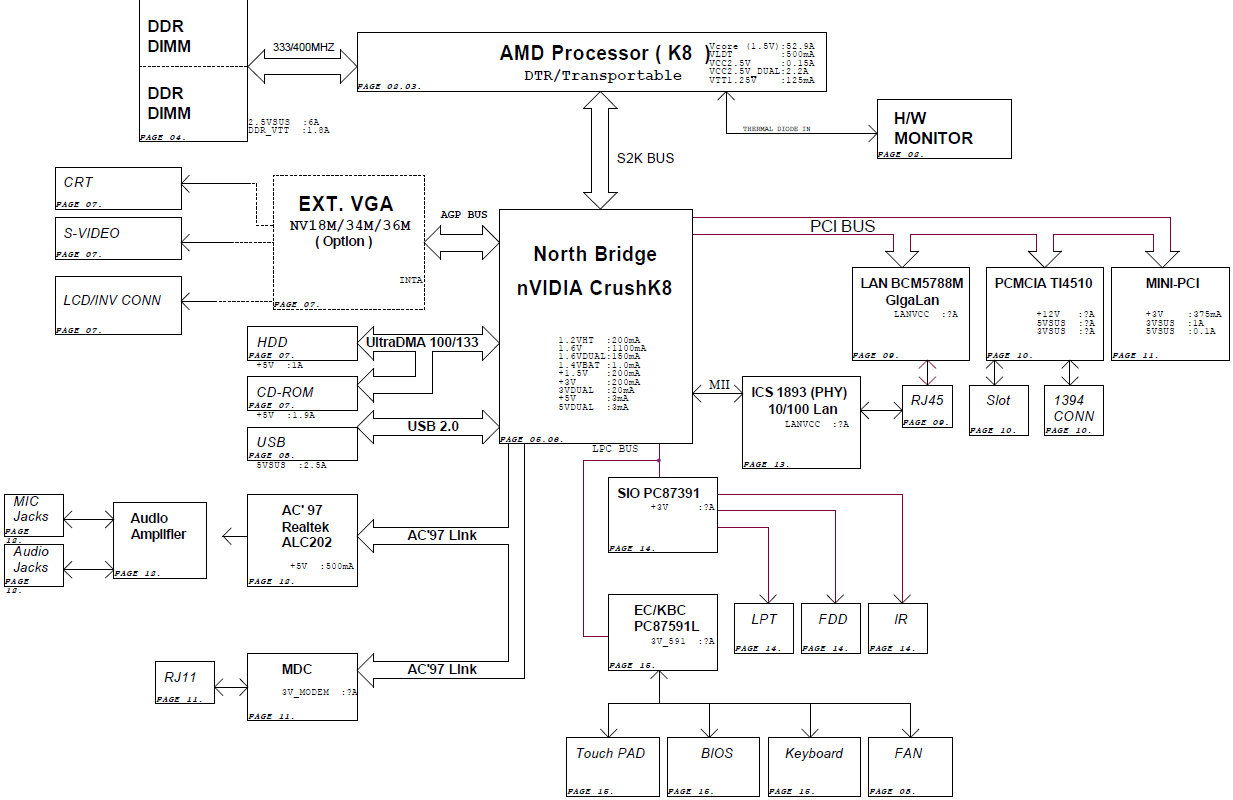

Click on picture to enlarge	Price: US $9.75 Major components CPU :AMD Processor ( K8 ) North Bridge :nVIDIA CrushK8 South Bridge : ------------ VGA :EXT. VGA NV18M/34M/36M Clock Generator : Thermal Sensor : Audio Codec :ALC202 Audio Amplifier : KBC(Embeded Controller),SIO : PC87591L,PC87391 LAN Controller : ICS 1893,BCM5788M CardBUS/1394/Cardreader Contr.:TI4510 <Power System> MAX1632 SC1470 SC2595 ISL6559CB Total Pages : 21 File type : PDF Language : English

Click on picture to enlarge

Price: US $9.75

Major components

CPU :AMD Processor ( K8 )
North Bridge :nVIDIA CrushK8
South Bridge : ------------
VGA :EXT. VGA NV18M/34M/36M
Clock Generator :
Thermal Sensor :
Audio Codec :ALC202
Audio Amplifier :
KBC(Embeded Controller),SIO : PC87591L,PC87391
LAN Controller : ICS 1893,BCM5788M
CardBUS/1394/Cardreader Contr.:TI4510

<Power System>

MAX1632
SC1470
SC2595
ISL6559CB

Total Pages : 21
File type : PDF
Language : English

Updated: 17-02-2010
