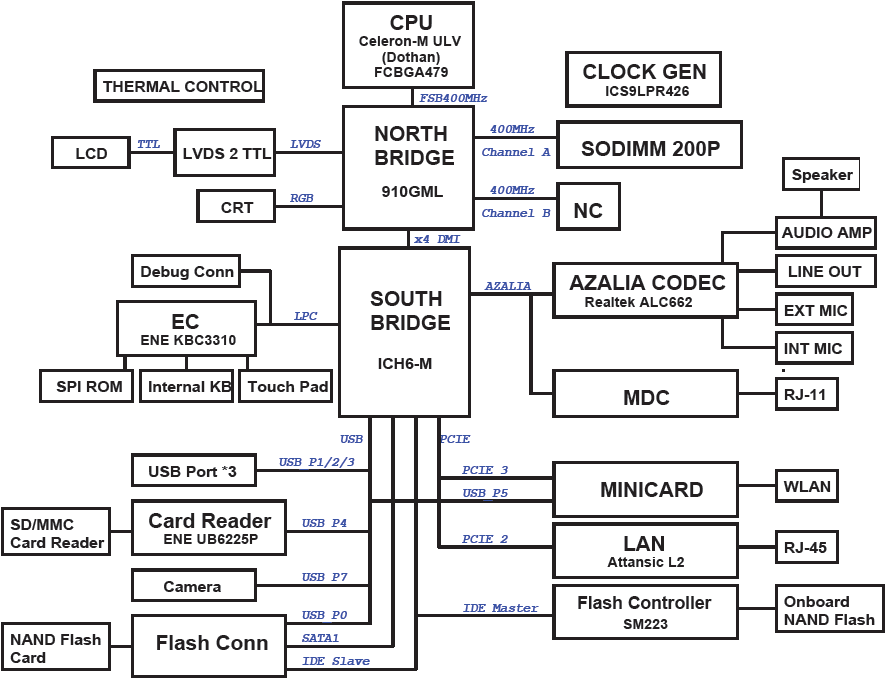

Asus EEE-series P701, Motherboard Schematic diagram

Click on picture to enlarge	Price: US $15.00 !!! Board view included. Locate any component and get the comprehensive information about it in few seconds !!! !!! Power Sequence & Power Flow diagrams included !!! Major components CPU :Intel Celeron-M ULV Thermal Sensor : Chipset :Intel Alviso GML (QG82910GML)/ICH6-M (NH82801FBM) Clock Generator :ICS9LPR426 Audio Codec :Realtek ALC662 Audio Amplifier :TPA6017A2PWP KBC(Embeded Controller),SIO :ENE KBC3310 LAN Controller :ATHEROS Card BUS etc. .... :ENE UB6225P <Power System> ISL6545CBZ-T ISL6545CBZ-T ISL6545CBZ-T LM358DR ISL6545CBZ-T RT9173CPSP ISL6218CRZ MAX8724ETI Total Pages :47 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

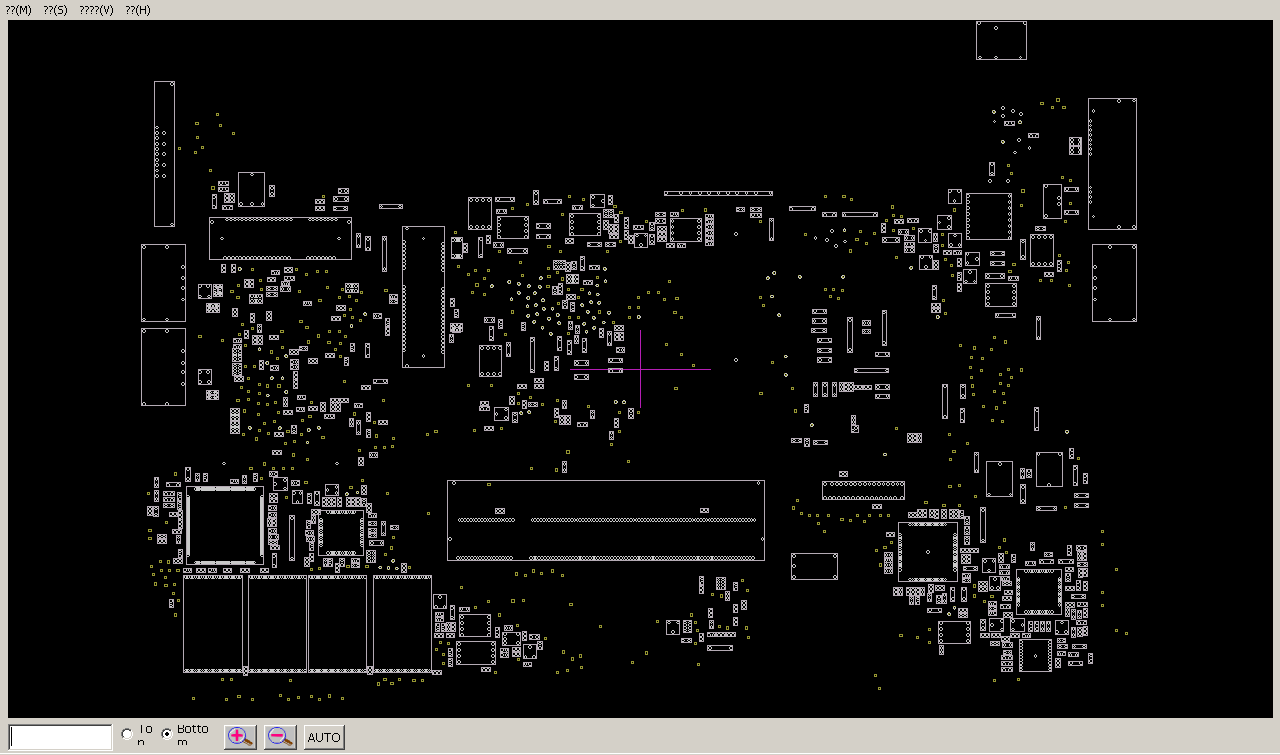

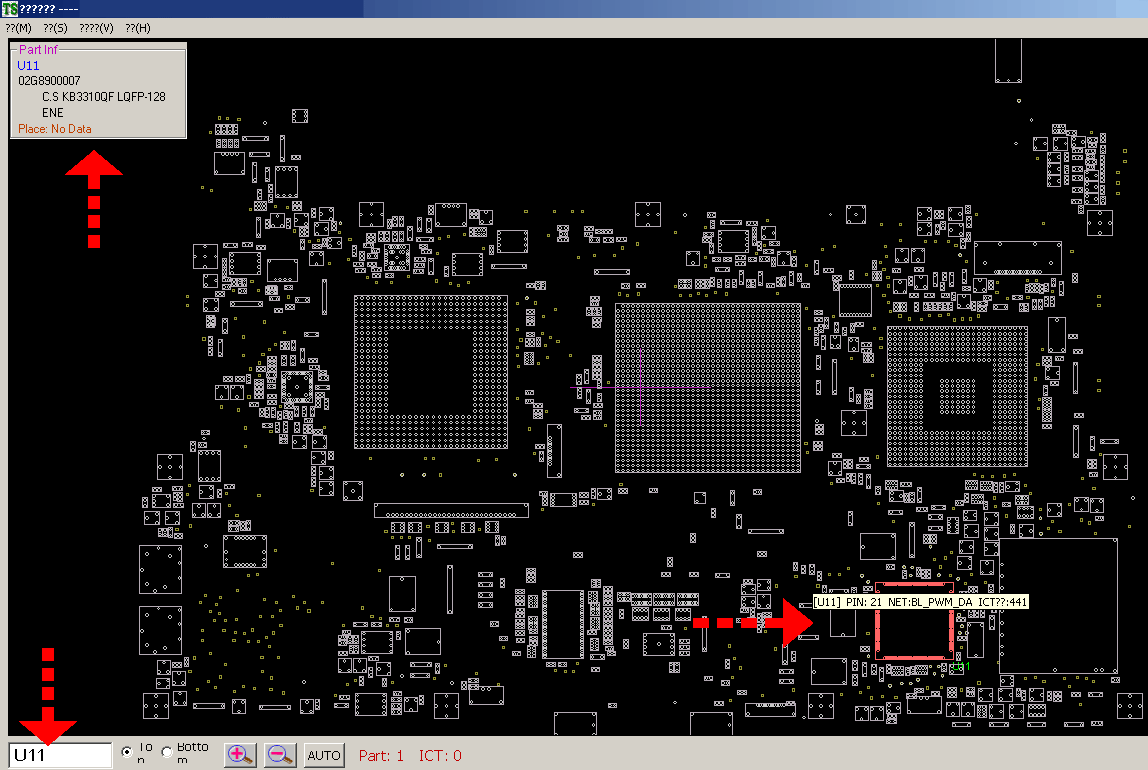

!!! Board view included. Locate any component and get the comprehensive
information about it in few seconds !!!

!!! Power Sequence & Power Flow diagrams included !!!

Major components

CPU :Intel Celeron-M ULV
Thermal Sensor :
Chipset :Intel Alviso GML (QG82910GML)/ICH6-M (NH82801FBM)
Clock Generator :ICS9LPR426
Audio Codec :Realtek ALC662
Audio Amplifier :TPA6017A2PWP
KBC(Embeded Controller),SIO :ENE KBC3310
LAN Controller :ATHEROS
Card BUS etc. .... :ENE UB6225P

<Power System>

ISL6545CBZ-T
ISL6545CBZ-T
ISL6545CBZ-T
LM358DR
ISL6545CBZ-T
RT9173CPSP
ISL6218CRZ
MAX8724ETI

Total Pages :47
File type : PDF
Language : English

Updated: 28-02-2010
