Acer Aspire 1500, Motherboard Schematic diagram

Click on picture to enlarge	Price: US $9.75 Major components CPU : AMD CPU Athlon 64 North Bridge : VIA K8T800 South Bridge : VIA VT8235CE VGA : ATI M10-P Clock Generator : CY28331-2 Thermal Sensor : Audio Codec : VT1612A Audio Amplifier : APA2020 KBC(Embeded Controller),SIO : M38859,PC87392 LAN Controller : BCM4401/5705M CardBUS/1394/Cardreader Contr.: W83L518D-VD6,OZ263 <Power System> ATINY12/MAX1645 MAX1999 MAX1715/CM8500 HIP6301 / ISL6207 TPS5110/FDC653N/APL1117 G913C/LP2951ACM/FDS9412 Total Pages : 51 File tipe : PDF Language : English North Bridge : South Bridge : VGA : Clock Generator : Thermal Sensor : Audio Codec : Audio Amplifier : KBC(Embeded Controller),SIO : LAN Controller : CardBUS/1394/Cardreader Contr.: <Power System> Total Pages : File type : PDF Language : English

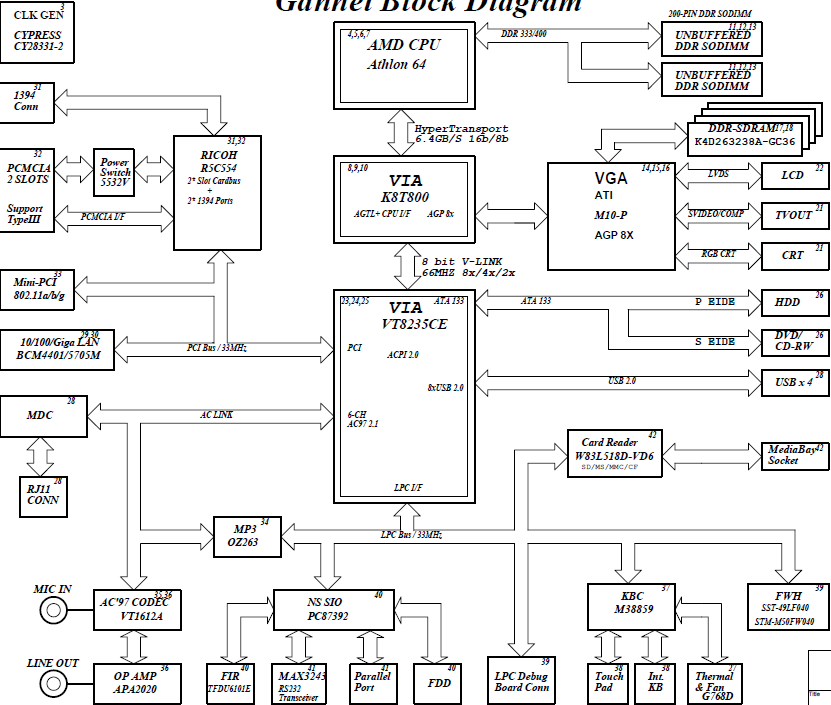

Click on picture to enlarge

Price: US $9.75

Major components

CPU : AMD CPU Athlon 64
North Bridge : VIA K8T800
South Bridge : VIA VT8235CE
VGA : ATI M10-P
Clock Generator : CY28331-2
Thermal Sensor :
Audio Codec : VT1612A
Audio Amplifier : APA2020
KBC(Embeded Controller),SIO : M38859,PC87392
LAN Controller : BCM4401/5705M
CardBUS/1394/Cardreader Contr.: W83L518D-VD6,OZ263

<Power System>

ATINY12/MAX1645
MAX1999
MAX1715/CM8500
HIP6301 / ISL6207
TPS5110/FDC653N/APL1117
G913C/LP2951ACM/FDS9412

Total Pages : 51
File tipe : PDF
Language : English

North Bridge :
South Bridge :
VGA :
Clock Generator :
Thermal Sensor :
Audio Codec :
Audio Amplifier :
KBC(Embeded Controller),SIO :
LAN Controller :
CardBUS/1394/Cardreader Contr.:

<Power System>

Total Pages :
File type : PDF
Language : English

Updated: 17-02-2010
