Acer Aspire 1310, Motherboard Schematic diagram

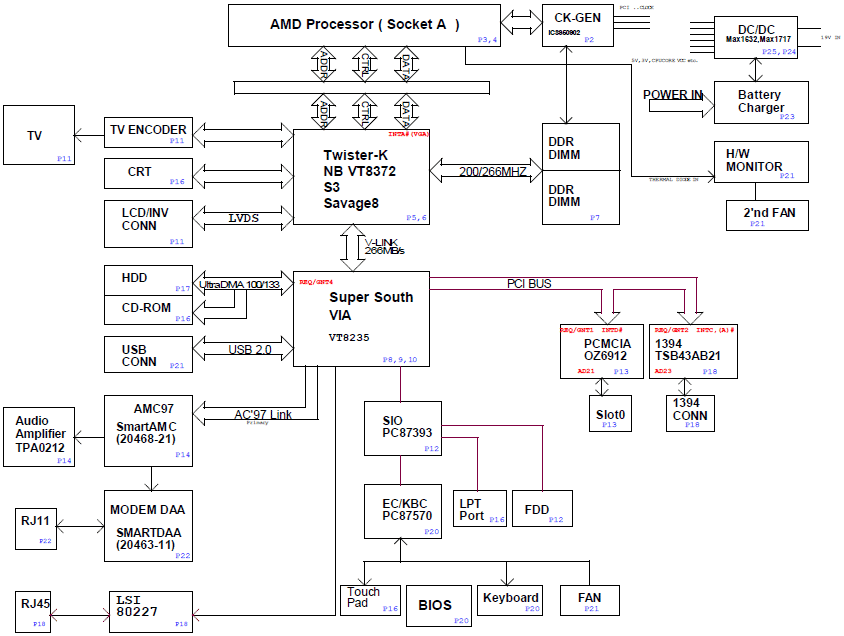

Click on picture to enlarge

Price: US $9.75

Major components

CPU :AMD Processor ( Socket A )
North Bridge :VIA Twister-K VT8372 / S3 Savage8
South Bridge :VIA VT8235
VGA :UMA
Clock Generator :ICS950902
Thermal Sensor :
Audio Codec :SmartAMC 20468-21
Audio Amplifier :TPA0212
KBC(Embeded Controller),SIO :PC87570
LAN Controller :LSI 80227
CardBUS/1394/Cardreader Contr.:OZ6912,TSB43AB21


<Power System>
Max1632,Max1717


Total Pages : 26
File type : PDF
Language : English
Updated: 17-02-2010
