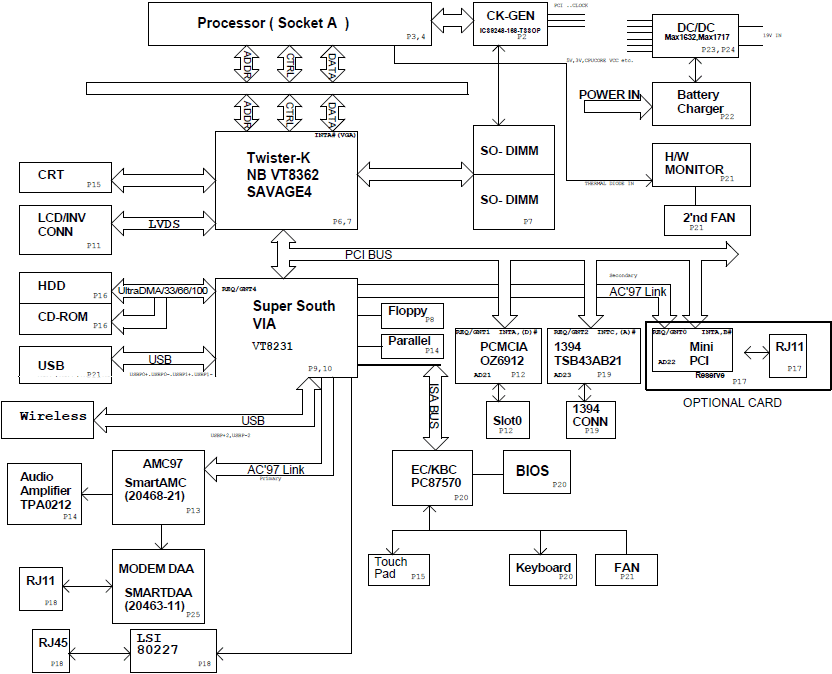

Acer Aspire 1300, Motherboard Schematic diagram

Click on picture to enlarge	Price: US $9.75 Major components CPU : Processor ( Socket A ) North Bridge : VIA Twister-K VT8362 / SAVAGE4 South Bridge : VIA VT8231 VGA : UMA Clock Generator : ICS9248-168-TSSOP Thermal Sensor : Audio Codec : SmartAMC 20468-21 Audio Amplifier :TPA0212 KBC(Embeded Controller),SIO :PC87570 LAN Controller :LSI 80227 CardBUS/1394/Cardreader Contr.:OZ6912,TSB43AB21 <Power System> Max1632 Max1717 Total Pages : 26 File type : PDF Language : English

Click on picture to enlarge

Price: US $9.75

Major components

CPU : Processor ( Socket A )
North Bridge : VIA Twister-K VT8362 / SAVAGE4
South Bridge : VIA VT8231
VGA : UMA
Clock Generator : ICS9248-168-TSSOP
Thermal Sensor :
Audio Codec : SmartAMC 20468-21
Audio Amplifier :TPA0212
KBC(Embeded Controller),SIO :PC87570
LAN Controller :LSI 80227
CardBUS/1394/Cardreader Contr.:OZ6912,TSB43AB21

<Power System>

Max1632
Max1717

Total Pages : 26
File type : PDF
Language : English

Updated: 17-02-2010
