Acer Aspire 1200, Motherboard Schematic diagram

Click on picture to enlarge	Price: US $9.75 Major components CPU : INTEL FC-PGA370 North Bridge : Twister PN-133T VT8606 South Bridge : VT686B VGA : UMA Clock Generator : ICS 9248-195 Thermal Sensor : Audio Codec :OZ163 Audio Amplifier : KBC(Embeded Controller),SIO : PC87570 LAN Controller : CardBUS/1394/Cardreader Contr.:OZ6933,TSB43AB22,CH7005 <Power System> MAX1711 MAX1632 TPS2206AI/TPS2216 Total Pages : 34 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $9.75

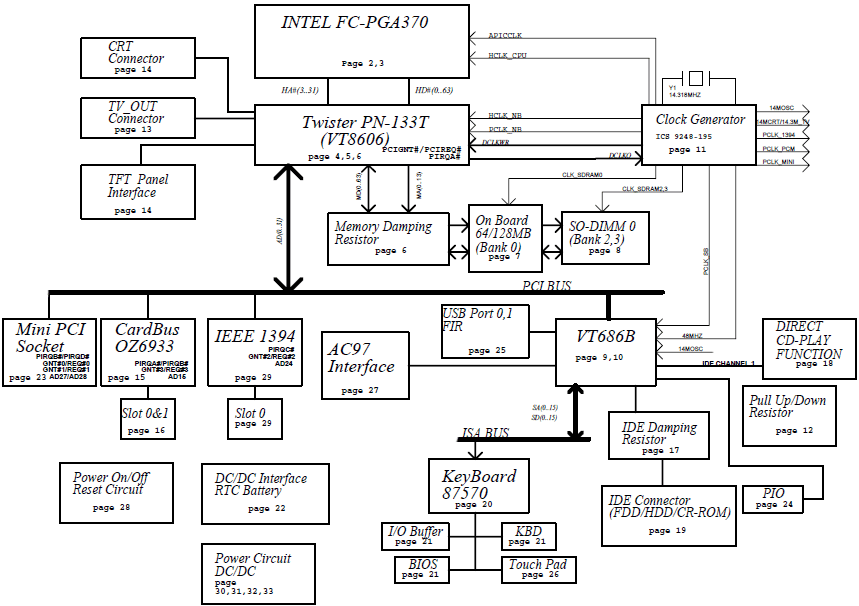

Major components

CPU : INTEL FC-PGA370
North Bridge : Twister PN-133T VT8606
South Bridge : VT686B
VGA : UMA
Clock Generator : ICS 9248-195
Thermal Sensor :
Audio Codec :OZ163
Audio Amplifier :
KBC(Embeded Controller),SIO : PC87570
LAN Controller :
CardBUS/1394/Cardreader Contr.:OZ6933,TSB43AB22,CH7005

<Power System>

MAX1711
MAX1632
TPS2206AI/TPS2216

Total Pages : 34
File tipe : PDF
Language : English

Updated: 15-02-2010
